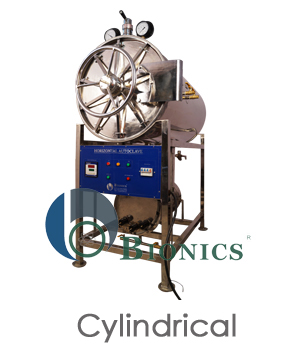

Cylindrical Horizontal Autoclave

Rectangular Horizontal Autoclave

Horizontal Autoclaves, manufactured by Bionics Scientific are smart investment for hospitals and laboratories, where large volume of sterilization is required. Designed ergonomically, our range of high pressure horizontal autoclave sterilizers is ideal for academic facilities, biotech industries, pharmaceutical industries, hospitals, research centers and food and beverage industries. These units efficiently meet stringent sterilization requirements and well suited for sterilizing hospital dressings and surgical instruments, rubber and plastic goods, glassware and utensils etc.

We manufacture both rectangular and cylindrical horizontal autoclave systems, which can be further customized in order to match specific requirements of our customers. The scope of customization includes construction material, inner tank volume, valves and printer options. These units can also be constructed with vacuum drying option; for this purpose a provision of vacuum (through vacuum pump) in the chamber is applied. Our each horizontal autoclave unit provides highly satisfactory performance and competitive price guarantee.


Features:


Available in rectangular and cylindrical shapes Double and triple walled construction
Inner tank capacity up to 240 liters or more Single and double doors
Automatic pressure locking device Immersion type heating element
Neoprene rubber gasket door seal Automatic vacuum breaker
Low water cut-off device Hydraulic testing up to 2.5 times working pressure

Specifications:


Model BST-HA78L BST-HA135L BST-HA152L BST-HA162L BST-HA240L
Internal Tank Capacity 78 Liters 135 Liters 152 Liters 162 Liters 240 Liters
Design Rectangular & Cylindrical Type
Working Pressure Variable 5 to 30 PSI
Working Temperature 121°C (up graded up to 135°C)
Internal Chamber Corrosion Resistant Stainless Steel
External Chamber Corrosion Resistant 304 Grade Stainless Steel, Painted
Door Single or Double Doors w/ automatic pressure locking
Insulation Glass wool Fiber
Sterilization Period 20 to 25 Minutes
Steam Exhaust 5 to 7 Minutes
Boiler With ISI marked water immersion type industrial heating elements
Pressure stat,
Safety Valve For excess pressure inside jacket and steam generator
Mechanical Time w/ Alarm Regulates sterilization time and activates buzzer when sterilization cycle completes
Standard Accessories - SS304 Sterilizing tray x 1pc
- Water level glass tube x 2pcs
- Heating element x 1pc
- Silicone door seal x 1pc
Optional Accessories - PLC operation
- Vacuum drying
- Printer
- Auto add water
- Door interlock
- Automatic Pressure control switch
- water cut-off
- Temperature indicator
- Caster wheels
Power Supply 220 Volts / 440 Volts

Our Horizontal Autoclave or Horizontal Sterilizer units come with durable construction made of 304 grade stainless steel. This machines have external chamber, internal chamber, boiler, lid and jacket - all made of 304 grade stainless steel.

For controlling sterilization cycle, a three way valve or a multiport valve made of stainless steel is used for controlling sterilization cycle effectively. The pressure inside the chamber is variable from 5 to 30 psi. For completely safe operation of the unit, it is supplied equipping with vacuum breaker, water level indicator, steam trap and automatic pressure control switch. The whole unit of horizontal autoclave is mounted on a robust tubular stand. Power supply required to run this autoclave is 3 phase 440 Volts, on request single phase operation can also be designed.

The standard range comes with internal tank volume range from 78 to 360 liters, however on specific requirement of customer, depend on usage these can further upgraded up to maximum 600 liters. Customers who require below 78 liters horizontal autoclave models these can also be designed on order.


Accessories:


Electric OR LPG heating Steam generator Rapid water re-cooling
Vacuum drying pump Auto add water pump Low water protection device
Digital temperature indicator PLC control system Digital chart recorder
Cycle with pre-vacuum option Carriages, Trolleys, Trays & Baskets Steam trap
