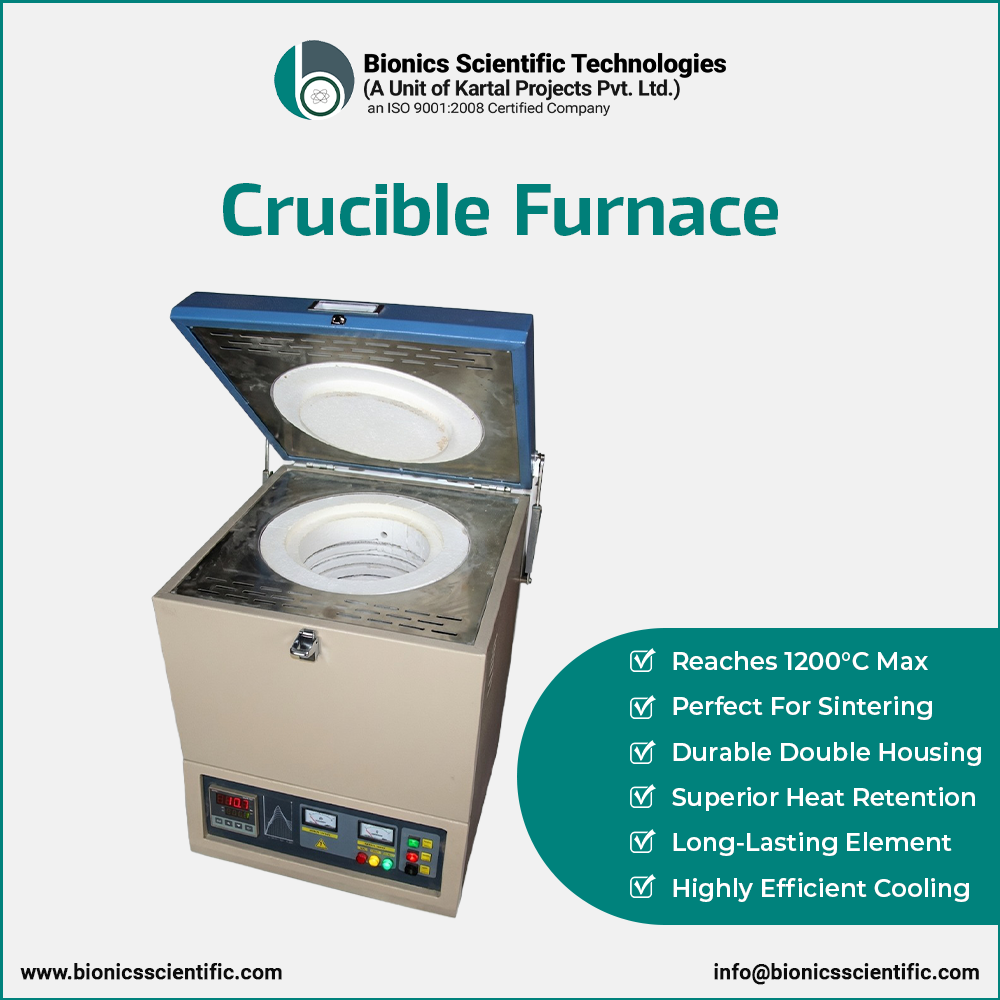

Crucible Furnace

Crucible Furnace is suitable for general purpose laboratory heat treating applications, sintering ceramic parts and components and melting gold and copper. It is double layered equipment, fitted with air cooling system and energy efficient heating element, delivering wonderful performance all the time. This crucible furnace features unique ceramic fiber insulation ensuring excellent level of temperature uniformity. The unit is operated on maximum 1200°C temperature and working temperature will be 1100°C.

To meet individual requirements and specific project needs, we also offer custom manufacturing facilities to our customers. Our crucible furnace can also be manufactured with required temperature range, type of heating element and other configurations. At highly competitive price, this unit is supplied all over India and overseas with excellent warranty and after sales service.


Features:


Up to 1200°C max. temperature Ideal for sintering ceramics and metals
Double layred housing Ceramic fiber insulation
Long service life heating element Highly effecient air cooling


Specifications:


Model BST/CF-1200
Max. Temperature 1200°C
Working Temperature 1100°C
Temperature controller PID controller
Heating Element Fe-Cr-Al
Max. Heating Rate 40°C/min
Construction Double layer steel
Insulation Ceramic fiber
Cooling Air cooling
Power supply 220 Volts 50Hz
