Large Capacity Refrigerated Shaking Incubator, Floor Standing Incubator Shaker

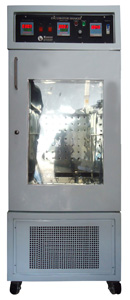

Floor Standing Large Capacity Shaking Incubator

Using advanced technology and extensive research based on user experience we are designing and manufacturing large capacity shaking incubators. These orbital shaking incubators are designed with and without refrigeration system. If you have any particular specification in terms of size, rotation speed and temperature range, we will also help you to get the system designed to meet your requirements. Below are standard features however can be customized as per requirements.

Large capacity shaking incubators are versatile and robust in design. Featuring volume, flexibility and reliability Bionics shaking incubators are perfect for applications that require large space and continuous working. These incubator shakers with added refrigeration are ideal choice for large quantities of cultures with precision and ease. With fully automatic programming functions these shaking incubator systems offer convenient and error less operations.

These large capacity incubator shakers are designed with painted stainless steel construction while inner chamber also made of steel delivers is easy to clean. Stainless steel shelves are adjustable and can be detached and cleaned easily by the users.

Fluorescent light in these shaking incubators provides clear visibility of large interior chamber. Shaking motion orbital or reciprocating is programmable and rotation speed 10 to 500 RPM slow down or stop can be controlled on timed basis.


Features:


Combination of incubator and shaker Floor standing design
Orbital or reciprocating action Digital Temperature and speed display
Microprocessor PID control / Auto-tuning / Calibration Over-temperature limit / Door open alarm
Long life refrigeration compressor Interior Light for Improved Visibility
Universal shaker platform Stainless Steel interior
Solid doors with viewing glass Stainless steel shelves included
With & w/o Refrigeration system Specifications can be customized

Specifications:


Modelh BST/FS-155h BST/FS-156h BST/FS-157h
Refrigeration System With Refrigeration With Refrigeration With Out Refrigeration
Design Floor Standing   Floor Standing
Temperature Range -20°C to 60°C 5°C to 60°C Ambient +5°C to 60°C
Temperature Uniformity +/-0.5°C at 37°C EST
Rotation type Orbital
Reciprocating (optional)
Timer Function 1-999 minutes
Rotation Speed 10-500 rpm, +/- 1 rpm
Alarm Audible and visible Alarm, Audible alarm can be muted
Construction Stainless steel interior, powder coated steel exterior
Display LED Display
Lighting Illumination lamp
Doors Solid door with tempered glass
Shelves Stainless steel shelves
Refrigerant CFC Free refrigerant
Motor Long lasting and Smooth running brushless motor
Certification CE Marked
Power Supply 220 Volts
