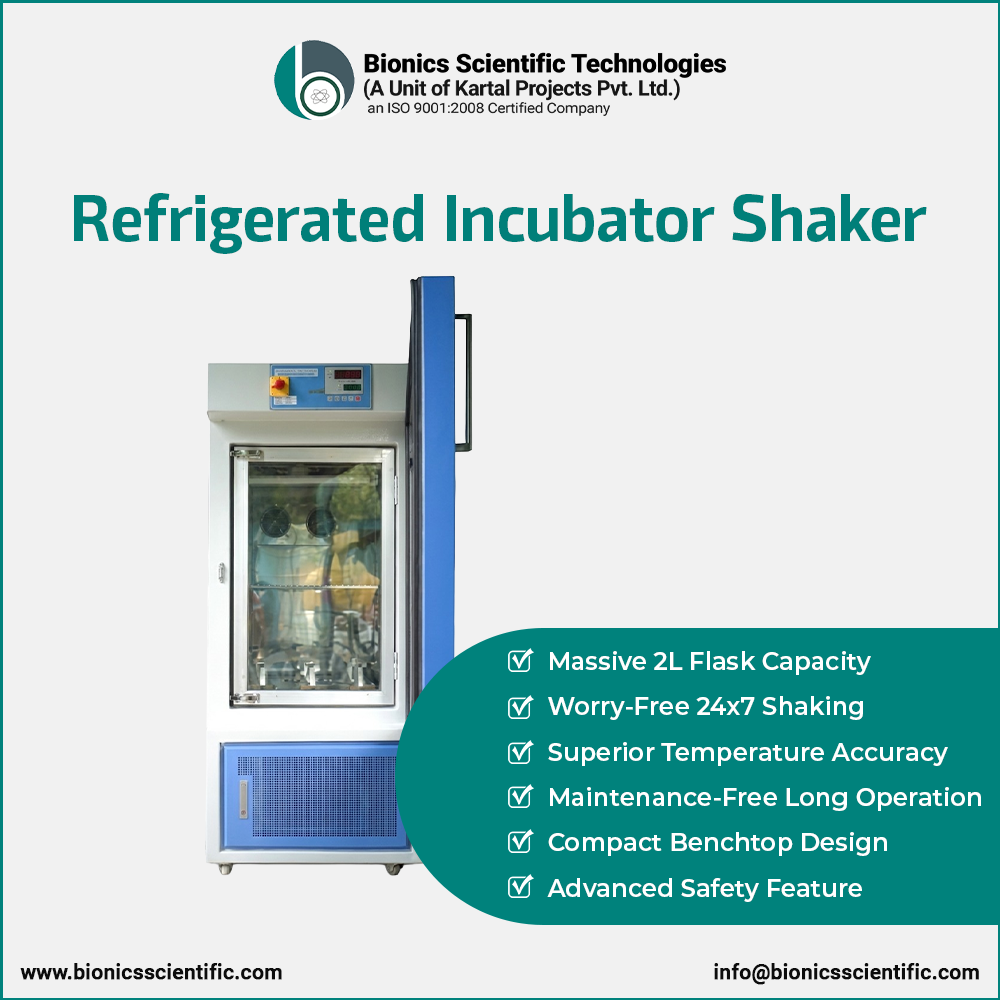

Refrigerated Incubator Shaker
This orbital shaker incubator comes equipped with refrigeration facility. It features 25 to 400 rpm speed control vial user-friendly keypad with push button controls. Microprocessor based PID controller offers superior temperature accuracy and fan circulation ensures excellent uniformity of temperature. Brushless DC motor gives long maintenance free operation. This benchtop refrigerated incubator shaker utilizes only CFC free refrigerant.
This refrigerated shaking incubator has a dedicated universal platform for various flasks and tube racks; it accommodates a minimum of 4 number 2L Erlenmeyer flasks, or 20 number of 125 ml flasks, or 4 numbers of Tube racks (for 24 x 10 ml tubes). Triple-eccentric drive mechanism offers worry-free, 24x7 shaking and incubation. This unit is supplied with a number of useful accessories including spring clamps, tube rack and adjustable stationary incubation shelf.
Safety of samples is a prime factor and our benchtop refrigerated shaker incubator boasts of its safety features. It is equipped with a audio / visual alarm that alerts user when the machine faces over speed or over temperature.
Features:
| Combination of refrigerated incubator and shaker | Table top design occupies less bench space |
| Automatic restart after power failure & chamber closing | Microprocessor based PID controller |
| Audio / visual alarm for over speed & temperature | Forced air circulation for temperature uniformity |
| Tempered viewing glass | Large capacity of flasks in a small foot print |
Specifications:
| Model | BST/RIS-100D |
|---|---|
| Temperature | 15 - 20°C below ambient to 80°C |
| Temperature uniformity | ± 0.25-0.5°C @ 37°C |
| Shaking Speed | 25 to 400 RPM ± 1 RPM |
| Timer operation | 0.1 hour to 99.9 hours or continuous mode |
| Shaking Orbit diameter | 0.75 to 1" |
| Restart mechanism | Automatic restart with set parameters after power failure and chamber closing |
| Display | LCD display for Temperature, RPM and Time |
| Alarm | Audible / visible alarm for over/under temperature and speed (RPM) |
| Shaking platform | - Universal platform - 4 X 2L Erlenmeyer flasks - Or 20 X 125 mL flasks - Or 4 X Tube racks (for 24 x 10 mL tubes) |
| Dive mechanism | Triple-eccentric counterbalanced drive in cast-iron housing with lubricated ball bearings Brushless D.C. motor |
| Controller | Microprocessor PID Controller |
| Construction | Interior: Stainless steel Exterior: Powder coated Mild Steel |
| Accessories | - SS Spring Clamps for 2 L flasks: 4 Nos. - SS Spring clamps for 125 mL flasks: 30 nos - SS Tube Rack: 6 nos - SS Universal Platform - Adjustable stationary incubation shelf |
| Refrigeration | Hermetically-sealed compressor uses CFC-free refrigerant |
| Power supply | 220 / 230 Volts 50 Hz |
| Optional | - Fluorescent lamp w/ external on/off switch - Caster wheels |
Bionics Scientific is a trusted manufacturer of refrigerated shaker incubator in India. In addition to standard models, we provide our customers benefit of customization. Our customers can freely ask for any kind of modification in terms of temperature range, construction materials, shaking speed, number of flask space etc. We provide guarantee of reasonable price and quality service and committed to build a healthy relationship for years.
