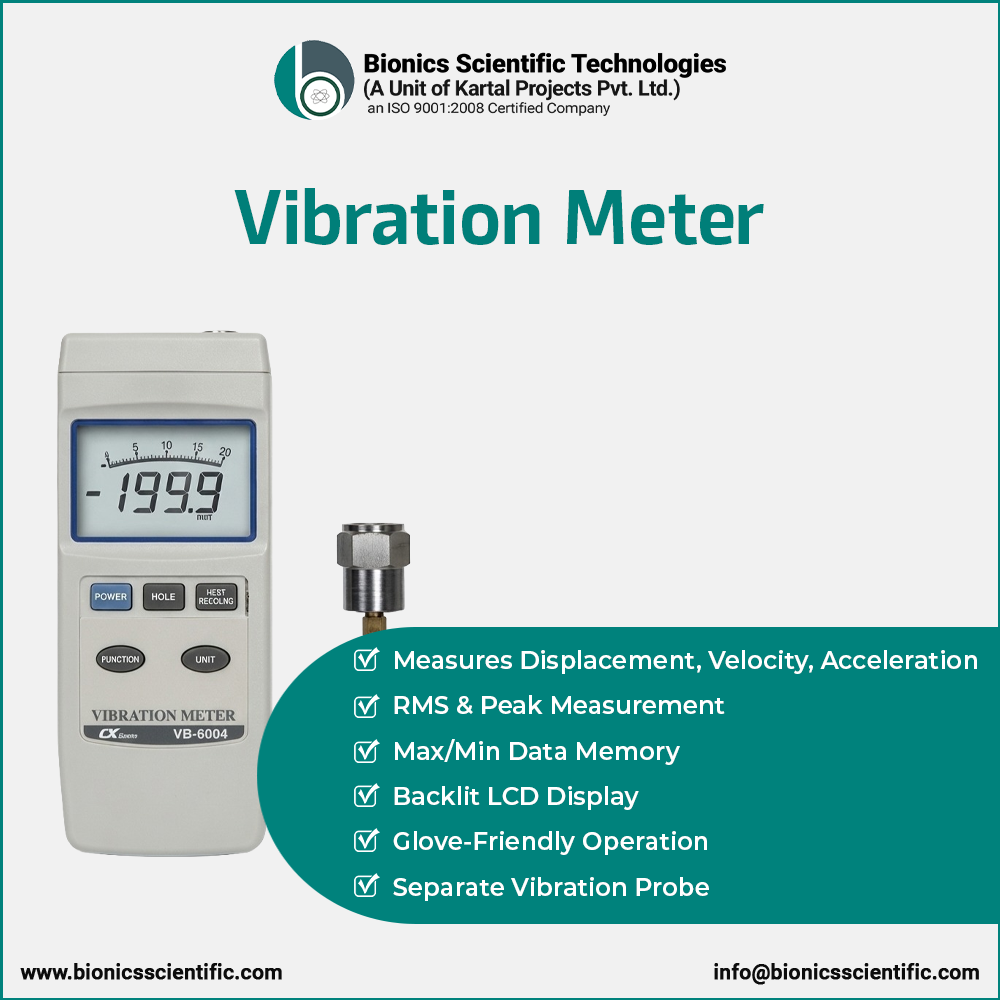

Vibration Meter

We are leading vibration meter manufacturer, supplier and distributor in India and are presenting our line of vibration measuring meters, which are high precision on-site instruments. These units are designed for a wide range of industrial applications especially used for routine maintenance and monitoring of rotational machinery as well as for performance testing during machine development.

With our Vibration level meter, Acceleration (ACC), Velocity (VEL), and Displacement (DISP) can be easily measured using a suitable frequency range which allows comprehensive and precise evaluation of machine vibrations. These instruments feature back-up function, computer interface, long continuous working and compact design. Equipping with many user friendly features, these equipment are considered most suitable and economical vibration measuring instrument available on the market.

We are supplying our vibration meters to all over India, Africa, Asia and Middle East countries at wholesale price.


Features:


Measurement of displacement / acceleration / velocity RMS & Peak measurement.
Easy to use buttons even with gloved hands Data hold, Memory (Max. & Min)
Separate vibration probe Easy to read LCD display w/ Back-lit

Specifications:

Model No BST-VS-8220
Display 61 mm x 34 mm supper large LCD Display.
15 mm (0.6") digit size.
Measurement Velocity, Acceleration RMS value, Peak value, Data hold, Max. & Min. value.

Range

 Velocity: 200 mm/s : 0.5 to 199.9 mm/s
Acceleration: 200 m/s2 : 0.5 to 199.9 m/s2
Frequency Range 10 Hz to 1 KHz(Sensitivity relativive during the frequency range meet ISO 2954)
Accuracy ± ( 5 % + 2 d ) reading
@ 80 Hz, 160 Hz. 185 x 78 x 38 mm
@ 23 ± 5 Deg C

Calibration Point

 Velocity : 50 mm/s (160 Hz)
Acceleration : 50 m/s2(160 Hz)
Circuit Exclusive microcomputer circuit.
Data hold Freeze the desired reading.
Peak Measurement To measure the peak value.
Power off Auto shut off, saves battery life, or manual off by push button.
Memory Maximum & Minimum value.
Sampling time Approx. 1 second.
Operating Temperature 0 to 50 Deg C ( 32 to 122 Deg F).
Operating Humidity Less than 80% RH.
Power Supply Alkaline or heavy duty type, DC 9V battery, 006P,
MN1604 (PP3) or equivalent.
Power Consumption Approx. DC 6 mA.

Accessories Included

 Vibration sensor ( VB-81A) ……….1 PC.
Cable ……….1 PC.
Magnetic base ………1 PC.
Carrying Case ……….1 PC.
