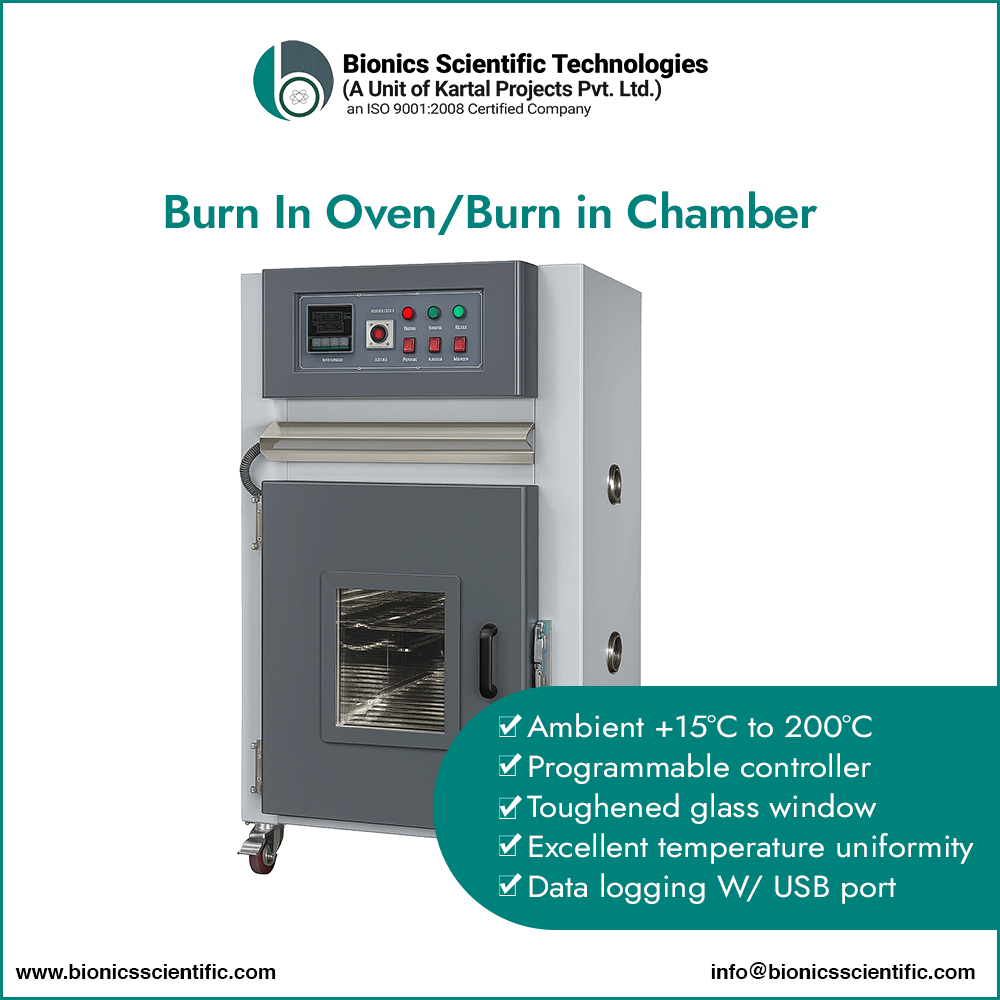

We manufacture, supply, and export burn-in ovens in India, also known as PCB baking ovens. These ovens support electronic testing in labs and meet industry standards. Users place electronic components, integrated circuits, and other semiconductor devices in the oven at temperatures between 100°C and 135°C to check their reliability. The process helps identify early failures under thermal stress.
We build each oven with durable materials and use trusted electrical components to ensure long-lasting performance.
We design burn-in ovens to match your exact specifications. Whether you need a specific chamber size, construction material, or type of controller, we make practical adjustments based on your requirements.
| A programmable profile controller (8-step: 4 ramp, 4 soak) |
| An HMI color touch screen with selectable programs, soak time, built-in data logging, and USB support for exporting temperature records as CSV |
| A toughened glass window on the door |
| A 50mm porthole for inserting cables and switching on devices inside the chamber |
| Temperature range | Ambient+10°C to 150°C |
| Temperature accuracy | ±1°C |
| Resolution | 0.1°C |
| Temperature Controller |
|
| Sensor type | RTD PT100 |
| Construction type | Double walled |
| Insulation | Mineral wool |
| Inner chamber | Stainless steel 304 |
| Exterior | Powder coated GI sheet |
| Door | Insulation solid door |
| Gasket | High temperature asbestos gasket |
| Trays |
|
| Heater | Tubular air heater |
| Air circulation | Motor driven blower |
| Safety features | Over temperature thermostat |
| Mounting | Caster wheels w/ brake (Floor standing models) |
| Power supply | 220 Volts 50Hz |
| Optional |
|
| Display | TFT LCD |
| Input | Compatible for wet-dry bulbs PT100(T/C,RTD,DCV) |
| Accuracy | 0.01% high precision sampling |
| System Capacity | 10 programs , 100 segments for each program |
| Operating Mode | Fixed value/ Programmable running mode |
| Output Method | PID+SSR/SCR automatic bidirectional synchronous output |
| Start pre-set | Equipment starting can be pre-set. |
| Communication Interface | Compatible for protocols (RS485,Modbus etc.) |
We offer a range of optional accessories with our burn-in ovens. Instead of a standard PID controller, you can choose a programmable profile controller with 8 steps (4 ramp and 4 soak). We also offer an HMI color touchscreen controller that supports selectable programs, soak time, built-in data logging, and temperature memory with date and time. This controller includes a USB port for transferring data to a pen drive in CSV format. Additional options include a toughened glass window on the door and a 50mm porthole for inserting cables and powering devices inside the chamber.
