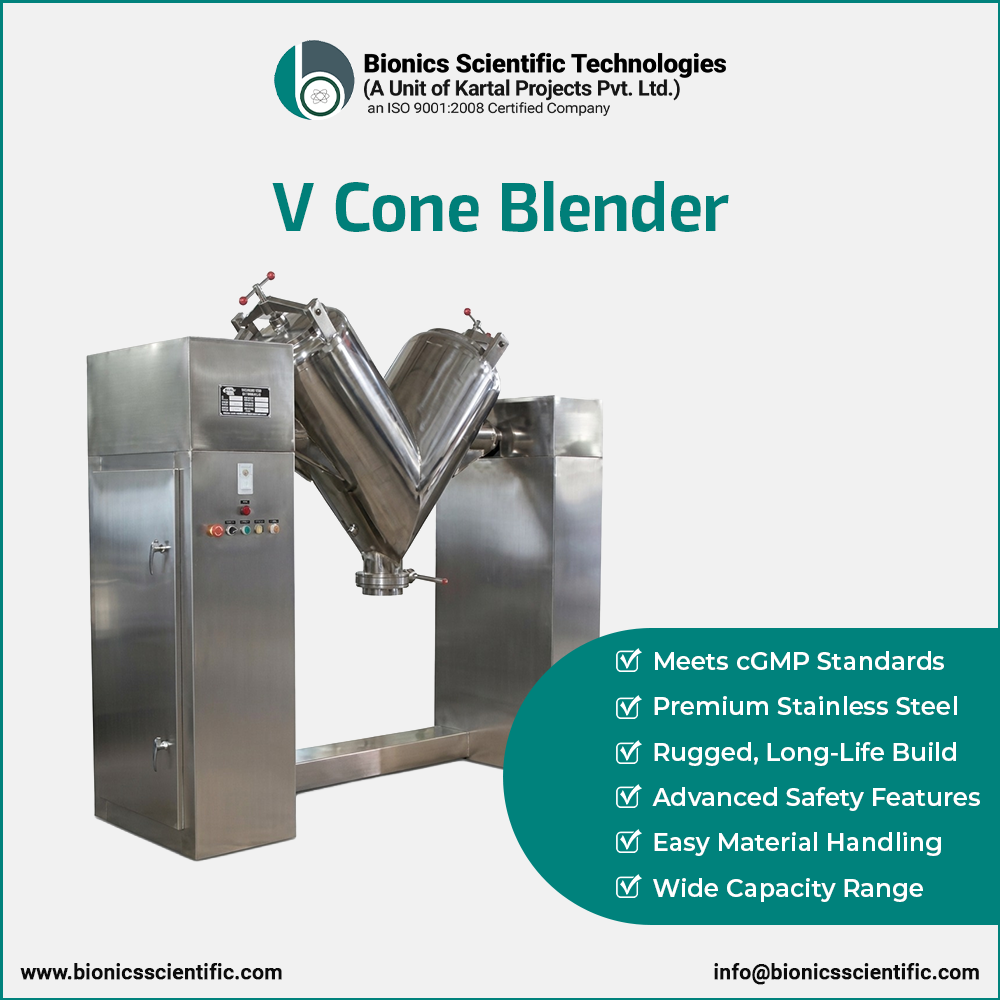

V Cone Blender Manufacturer in India

V Cone Blender for Uniform Powder Mixing

A V Cone Blender is used for gentle and uniform mixing of dry powders and granules in pharmaceutical, chemical, food and cosmetic industries. Poor blending can cause batch variation, uneven formulation and product rejection, especially in pharma production.

Bionics Scientific manufactures V Cone Blender machines in India with SS316 contact parts, cGMP design, dust-tight construction and optional intensifier bar for difficult powder mixing applications.

How V Cone Blender Works

The V Cone Blender works on the tumbling principle. When the V-shaped shell rotates, powder moves continuously from one side of the vessel to the other. This repeated division and recombination of particles helps achieve uniform blending without applying high shear force.

V blender fill volume

In order to achieve good mixing performance from a V Blender machine, it is advised to keep filling level up to 50% - 60% of total volume allowing particles to move in a set pattern. Keeping fill level under this percentage provides free space within cylinder during blending process and allows particles to follow a smooth passage, which ultimately minimizes time taken for homogeneous blending.

V Blender with Intensifier Bar

For mixing of minor ingredients or very fine granules that may form agglomerates while blending, an intensifier bar (beater or pin type) is optionally fitted to the machine. An intensifier bar has spray pipes for liquid addition. This intensifier bar also makes V Blender capable of: dry as well as wet mixing, mixing of fine as well as coarse particle compositions and mixing of cohesive powders.

This makes the machine suitable for free-flowing powders, granules and sensitive materials where gentle mixing is required. For cohesive powders or minor ingredient mixing, an optional intensifier bar can be added to break lumps and improve blend uniformity.

V Blender Sampling Locations

Sample Set	Symbol	Location
1	A	Left – Left – Top
2	B C D	Left – Left – Middle Left – Left – Bottom Discharge Port
3	E F G	Left – Center – Middle Center – Center – Center Right – Right – Bottom
4	H I	Right – Right – Top Right – Right – Middle
5	J	Right – Right - Top

Bionics Scientific is a leading V Blender manufacturer in India and offers V Blending machines in different sizes, capacities and choices of optional accessories. You can also explore our Double Cone Blender and Ribbon Blender for other powder mixing applications.

We have standard models with 50 liters to 10000 liters volumes. We can also custom engineer a V Blender to meet specific requirements of our clients. Each machine is manufactured to cGMP and FDA cGMP guidelines; therefore, perfect for pharmaceutical production use. Exterior and interior is made of high grade stainless steel.

If you want V Blender in any particular shape, please discuss with our engineering team, we have experience and engineering capabilities to design the exact machine that meets or exceed your unique application requirements.

Features:

15 to 3000 kg working capacity	Single or double plinth design
Meet cGMP design requirements	High grade stainless steel construction
Safety reeling with limit switch	Long life rugged construction
Manual rotating facility	Overload protection and emergency stop
Fully enclosed and dust tight drives	Easy loading and unloading of materials

How to Select the Right V Cone Blender

Selection Factor	Recommendation
Batch Size	Select working capacity based on 50% to 60% filling volume.
Material Contact Parts	SS316 or SS316L is recommended for pharmaceutical applications.
Powder Type	Use intensifier bar for cohesive powders, fine granules or minor ingredient mixing.
Automation Need	PLC with HMI can be selected for controlled production batches.

Specifications:

Model	Total volume  (Liters)	Material Capacity (Liters)	Working Capacity (KG)	RPM
BST/VB-50	50	25	15	25
BST/VB-150	150	75	45	20
BST/VB-300	300	150	90	20
BST/VB-500	500	250	150	18
BST/VB-1000	1000	500	300	15
BST/VB-1500	1500	750	450	12
BST/VB-2000	2000	1000	600	12
BST/VB-3000	3000	1500	900	9
BST/VB-4000	4000	2000	1200	9
BST/VB-5000	5000	2500	1500	8
BST/VB-6000	6000	3000	1800	8
BST/VB-8000	8000	4000	2400	6
BST/VB-10000	10000	5000	3000	6
MOC	Contact Parts - SS 316 / 316L Non-contact Parts - SS 304
Optional	- Pin Intensifier Bar - Beater Bar - Drum Loading System - Vacuum transfer system - PLC control with HMI - Side platform - Ladder - IQ, OQ and DQ documentations

Request V Cone Blender Price

Need help selecting the right V Cone Blender capacity for your production batch? Contact Bionics Scientific to get technical guidance, customization options and price details based on your material, batch size and industry application.
