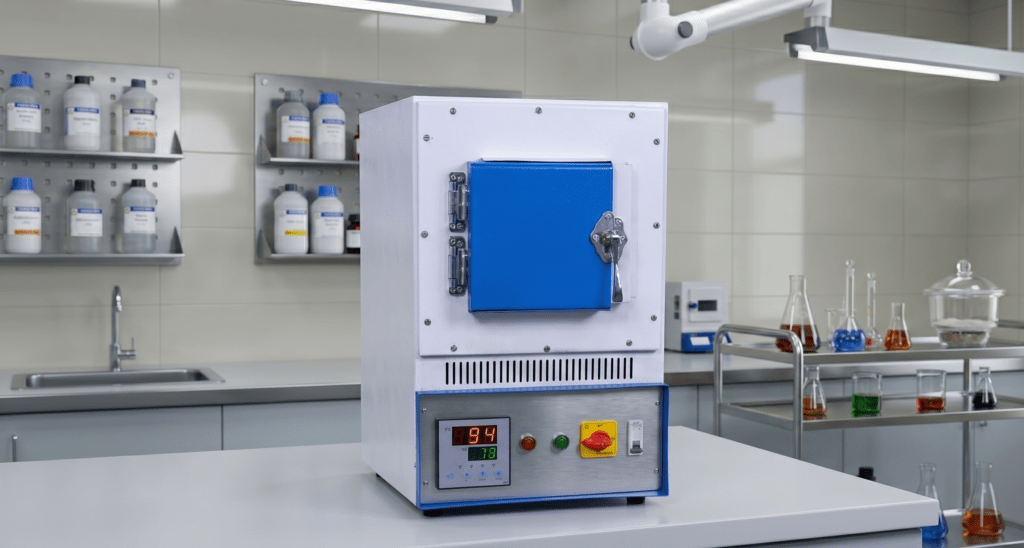

Ash Content Analysis Using a Muffle Furnace: Procedure, Formula, and Applications

Ash Content Determination Using Muffle Furnace is an analytical procedure that is performed in the lab in order to determine the amount of inorganic material that remains from a sample when it is heated according to certain conditions. This procedure can also be useful in determining inorganic materials in plastics and composites.

The usual process includes sampling, weighing, heating the sample using the prescribed test method, and cooling the residue in a desiccator and reweighing the cooled sample. Ash content is determined as the ratio of the weight of residue to the weight of initial sample and then multiply by 100. For accurate results, laboratories have to take care of the sample preparation, temperature and heating conditions, cleaning of crucible, cooling before reweighing the sample.

The temperature required varies depending on the test standards and samples tested; there is no universal temperature for all the tests. This document will help you understand the process of calculation and testing procedures, common errors, applications and considerations when selecting a muffle furnace for the laboratory work.

Most plastic materials contain organic and inorganic components. When the sample is heated inside a muffle furnace, the organic portion burns away. Whatever remains is the inorganic residue.

In reinforced plastics, that residue is often the following:

Glass fibers
Mineral fillers
Silica
Calcium compounds
Certain metal oxides

The final residue tells us how much inorganic material was originally present.

Ash Content Test Procedure

Ash content testing requires careful sample preparation, controlled heating, and accurate weighing to obtain reliable results. The exact temperature and heating time should be selected according to the material and applicable test method.

Clean and weigh the empty crucible.
Add the prepared sample and record the sample weight.
Place the crucible in the muffle furnace.
Heat the sample according to the applicable test method and material requirements.
After ashing, cool the crucible in a desiccator.
Weigh the crucible with the remaining ash.
Calculate the ash content using the sample and residue weights.

Ash Content (%) = Weight of Ash ÷ Weight of Original Sample × 100

Sample Collection Causes More Problems Than People Think

If I had to guess, I would say more incorrect ash values come from bad sampling than from furnace problems.

A technician grabs material from one corner of a batch.

Another technician takes material from a different location.

Both perform the test correctly.

Results are different.

Then everyone starts questioning the furnace.

The actual problem was the sample.

In many manufacturing plants, filler distribution is not perfectly uniform. That’s why experienced laboratories usually collect material from several locations before preparing the test specimen.

The sample has to represent the production batch. Otherwise the numbers don’t mean much.

The Muffle Furnace Does Most of the Work

For ash content testing, the furnace is doing the heavy lifting.

The sample sits inside a crucible and is exposed to controlled temperatures. Depending on the material, we usually work somewhere between 550°C and 900°C.

One thing I always tell new technicians:

Don’t rush the heating process.

People sometimes assume higher temperature means faster testing.

Not always.

I’ve seen operators increase temperature beyond recommended conditions, hoping to save time. The result is often inconsistent data and unnecessary repeat testing.

Stable temperature is more valuable than extreme temperature.

A good laboratory muffle furnace should provide:

Uniform chamber heating
Consistent temperature control
Reliable repeatability
Minimal contamination risk

Without those things, ash values can start drifting.

A Common Mistake During Testing

One issue we frequently encounter involves furnace stabilization.

The furnace display reaches the setpoint temperature and the operator immediately loads samples.

Technically the temperature has been reached.

Practically, the chamber may not yet be fully stabilized.

Experienced operators usually wait before introducing samples. That extra waiting period often improves consistency, especially when multiple batches are being compared.

It’s one of those small habits that makes a difference over time.

Moisture Is Sneakier Than Most People Realize

Fresh ash residue likes to absorb moisture.

A lot. I’ve watched technicians carefully perform an entire test, then leave the crucible exposed on a bench while answering a phone call.

Ten minutes later, the weight has changed.

Now the result is questionable.

This is exactly why desiccators are used.

After ashing, the crucible should be transferred into a desiccator for cooling before final weighing.

It seems like a minor step.

It isn’t. Skipping it can create enough variation to trigger unnecessary investigations.

Why Ash Content Analysis Using a Muffle Furnace Matters

Customers rarely call asking about ash content directly.

What they call about is

Product strength
Cracking issues
Performance differences
Material consistency

Ash content testing often helps explain those problems.

I remember a manufacturer producing glass fiber reinforced plastic panels. Product appearance was fine. Production records looked normal.

Yet mechanical testing results varied between batches.

The laboratory started checking ash values more closely.

The numbers showed reinforcement levels were not consistent.

After some investigation, the root cause turned out to be inconsistent raw material feeding.

Without ash content testing, the problem would have been much harder to identify.

Glass Fiber Reinforced Plastic Panels

This is probably one of the most common applications.

Many GFRP products depend on a specific glass fiber percentage to achieve design requirements.

Too little reinforcement and the product may lose strength.

Too much reinforcement can create processing problems and increase production costs.

Manufacturers generally want a narrow acceptable range.

Ash content analysis provides a quick way to verify whether production is staying within that range.

During routine quality checks, laboratories compare current results with historical data.

If numbers begin drifting, production teams can investigate before customer complaints start arriving.

ASTM D5630

Most people in plastics testing have come across ASTM D5630 at some point.

ASTM D5630 is a test method used to determine the inorganic residue in plastics after ashing. This information is useful when evaluating fillers, reinforcements and other inorganic constituents during material quality control.

The method includes muffle-furnace-based procedures, but the appropriate procedure and test conditions must be selected according to the applicable edition of the standard and the material being tested.

The ash content determines the amount of residue left after the heat treatment process, but it does not indicate the nature of chemicals contained in the residue. Therefore, the result needs to be interpreted together with the material standardization and other related tests.

Before conducting the test, the lab needs to ensure whether the standard is valid, and the material fits the standard and the method adopted. For more details, see the official ASTM publication.

Problems We See During Troubleshooting

Some issues show up repeatedly.

Incomplete Combustion

Sometimes organic material remains in the sample after testing.

The reported ash value ends up higher than it should be.

Usually this comes down to insufficient heating time or incorrect temperature settings.

Contaminated Crucibles:

It happens more often than people admit.

A crucible isn’t cleaned properly.

Residue from a previous test remains.

The next result becomes unreliable.

Temperature Variation

If furnace performance starts drifting, ash values may also drift.

Regular calibration helps avoid surprises.

Poor Documentation

This one gets overlooked.

A laboratory may perform excellent testing but record incomplete information.

Weeks later nobody remembers exactly how the test was performed.

Good records save a lot of time.

Industries That Use Ash Content Testing

We regularly see applications from:

Plastic manufacturing
Composite materials
Automotive suppliers
Electronics manufacturers
Construction materials
Research laboratories
Quality control facilities

The reason is simple.

Material composition affects product performance.

Ash content testing helps verify that composition.

Something We Usually Check During Audits

Whenever audit samples come into the lab, one thing gets attention very quickly.

Can the same test produce the same result again?

Getting a single acceptable value is not difficult. Getting nearly the same value three or four times in a row is where the real confidence comes from.

I remember a case where two technicians tested material from the same batch and got slightly different results. After some checking, we found that the samples had been taken from different locations in the production lot. The furnace wasn’t the issue at all.

Little things like sampling and handling often have a bigger impact than people expect.

Incoming Material Doesn’t Always Match the Paperwork

Most suppliers provide material data sheets, but laboratories still verify materials from time to time.

I’ve seen situations where two raw materials looked identical when they arrived at the plant. Same color. Same appearance. Similar paperwork.

The ash values told a different story.

That’s one reason many quality teams run verification tests before materials are released for production. Finding a difference early is much easier than explaining a customer complaint later.

Different Labs, Different Numbers

Something that surprises new engineers is that two laboratories can test the same material and still end up with different results.

Usually the difference isn’t dramatic, but it happens.

One lab may cool samples slightly longer. Another may prepare the sample differently. Someone else may load the furnace in a different way.

None of those things sound significant by themselves.

Put them together and small differences start appearing in the final numbers.

That’s why most experienced laboratories follow the same procedure every time, even when the test seems routine.

Choosing a Muffle Furnace for Ash Content Analysis

People often ask what specification matters most when buying a muffle furnace.

To be honest, I don’t pay much attention to the highest temperature first.

For ash content testing, consistency is usually more important. A furnace that holds temperature properly every day is far more useful than one with an impressive specification sheet.

A few things I normally check are

Parameter	Typical Value
Maximum Temperature	1100°C–1200°C
Working Temperature	550°C–900°C
Controller	Digital PID
Chamber Material	Refractory Ceramic
Insulation	Ceramic Fiber

In day-to-day laboratory work, stable temperature and uniform heating make a bigger difference than many people expect.

Ash Content Analysis Using a Muffle Furnace vs Other Heating Methods

Over the years I’ve seen people try different methods for ash testing.

Some work for rough checks. Some create more confusion than answers.

Feature	Muffle Furnace	Open Flame	Hot Air Oven
Accuracy	High	Moderate	Moderate
Repeatability	Excellent	Poor	Moderate
Contamination Risk	Very Low	High	Low
Ash Testing Suitability	Excellent	Limited	Not Suitable

For routine testing, a muffle furnace is usually the easiest option to trust because results tend to be more consistent.

What Usually Affects the Price?

People sometimes wonder why two furnaces that look almost the same have very different prices.

Most of the difference is inside the unit, not outside.

Price is often influenced by:

Chamber size
Controller quality
Heating elements
Insulation
Temperature accuracy
Safety features

Personally, I would rather have a reliable furnace that gives repeatable results than save money and spend time repeating tests.

Why We Ended Up Using the Same Furnace for Years

I’ve worked in laboratories where equipment was replaced every few years, and I’ve also seen furnaces stay in service for a very long time.

Usually, the deciding factor wasn’t the brand name.

It was whether the furnace could be trusted when a result really mattered.

When technicians are pressured to release a batch or investigate a production issue, nobody is thinking about marketing claims. They just want the temperature to be where it should be and stay there.

I’ve seen furnaces stay in the same laboratory for a surprisingly long time. Not because anyone was attached to the equipment. Mostly because it kept giving consistent results and nobody had a reason to replace it. In a busy lab, that’s usually all people want.

From my point of view, that’s probably the best compliment any laboratory equipment can receive. Most people stop talking about it because it simply keeps doing its job.

Final Thoughts

After spending years around testing laboratories, I’ve noticed that most ash content investigations rarely start with a major equipment failure.

More often, the issue turns out to be something small.

A sample taken from the wrong location. A crucible that wasn’t cleaned properly. A technician rushing the cooling stage because production was waiting for results.

Individually, these things seem minor.

Together, they can completely change the final number.

That’s probably why experienced laboratories pay so much attention to routine practices. The test itself isn’t particularly complicated. The real challenge is performing it the same way every single time.

When that consistency is maintained, ash content analysis becomes one of the most reliable ways to understand what is happening inside a plastic or composite material long before problems show up in the finished product.

Need a Furnace for Ash Content Analysis Using a Muffle Furnace?

Every laboratory works a little differently.

Some run only a few samples each week. Others have furnaces operating almost every day.

Before selecting equipment, I usually suggest looking at the actual workload first. Sample volume, operating temperature, chamber size, and testing frequency often matter more than people expect.

If you’re unsure which furnace configuration would suit your application, the team at Bionics Scientific can help review the requirements and suggest an option based on the type of testing being performed rather than simply recommending the largest model available.

Certifications & Quality Compliance

Standard	Cert. No.	Scope	Valid Until
ISO 9001:2015 (QMS)	184876	Lab, scientific & cleanroom equipment mfg.	30-03-2029
CE (MDD 93/42/EEC)	184877	Products as per annexure	30-03-2029
GMP	184878	Includes fume hood and a biosafety cabinet.	30-03-2029
NSF/ANSI 61	183884	Bio-safety cabinet, lab & scientific equipment	08-03-2027

Frequently Asked Questions

What is ash content analysis through muffle furnace?
It is an analysis that measures the amount of inorganic material left after heating a sample in certain conditions.

How do you calculate the ash content?
You get the ratio of the net weight of the ash material and the original weight of the sample multiplied by 100.

What temperature is needed in testing the ash content?
The temperature needed in testing the ash content varies according to the type of material and the method that will be used in testing. It is best if you first check the scope of the test method like ASTM D5630 for plastic materials.

Why use a desiccator after ashing?
A desiccator serves as a place for the cooling of the crucible and the residue to be weighed since cooling and weighing can increase errors in the weighing process.

Is there a way to know the individual minerals present in the sample through ash content testing?
No, there is no way that you can detect the individual minerals in the sample through ash content testing.
