What is Double Distillation Unit Diagram? (Featured Snippet)

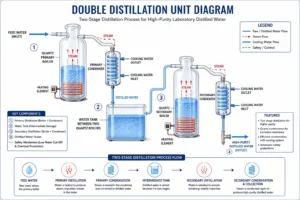

The diagram of a double distillation unit is a visual representation of the entire process of operation of a double distillation unit in the laboratory. The diagram shows how the water passes through the process of two-stage distillation using a quartz boiler, condenser, cooling system, and distilled water outlet to provide highly pure distilled water in pharmaceutical, research, chemical, and educational laboratories.
A diagram showing the distillation double system shows the way water goes in the process of distilling twice to get purified and obtain pure distilled water. These include things such as the quartz container, the heater, the condenser, the cooler, the water container, and the distilled water outlet.
Laboratory water quality is commonly evaluated using internationally recognized standards published by ASTM International.
The diagram of a double distillation unit helps users understand the process of functioning of laboratory water distillation systems and why a double distillation system provides better water quality than a single one.
Bionics Scientific produces high-precision laboratory water distillation systems.
Contents
- What is a Double Distillation Unit?
- Diagram of a Double Distillation Unit
- Principle
- Components
- Advantages
- Uses
- Double Distillation Unit VS Single Distillation Unit
- Buyers’ Guide
What is a Double Distillation Unit?
A double distillation unit is a water purification device used in the laboratory that purifies water by carrying out the distillation process twice in order to purify water from salt, minerals, heavy metals, microorganisms, and other contaminants. In the first step, raw water is converted into steam, and distilled water is obtained. This process is repeated once again in order to increase the quality of water.
As compared to a single distillation unit, a double distillation unit gives clean and dependable water and can be used in laboratories, pharmaceutical industries, biotechnology, chemical testing, and educational institutes.
Key Components
- Water Feeding Inlet
- Primary Quartz Boiler
- Heat Element
- Secondary Condenser
- Water Tank Between Two Quartz Boilers
- Secondary Condenser Cooling Water Inlet and Outlet
- Outlet for Distilled Water
- Safety mechanism automated
Water Flow

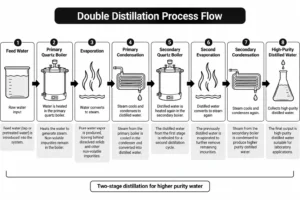

Feed Water -> Primary Distillation -> Condensation -> Secondary Distillation -> Secondary Condensation -> High-Purity Distilled Water
The above two-stage process makes it possible to remove more impurities from the water and produce lab-quality distilled water.
How It Works
The double distillation system is based on the principles of evaporation and condensation.
The raw water is introduced in the quartz boiler, where it is heated until it is turned into steam form. The non-volatile contaminants are left in the boiler, and only the pure steam passes to the condenser part. Steam is converted to distilled water in the cooling process.
Instead of gathering this distilled water, the system sends it back to another quartz boiler for another round of the distillation process.
Components Involved
Quartz Boiler
It offers superior heat resistance and does not cause any contamination while heating the water.
Heating Coil
Produces even heat to evaporate water effectively.
Condenser
Changes steam into purified distilled water by cooling.
Cooling Mechanism
Keeps condensation in check to improve the efficiency of the water production process.
Purified Water Outlet
Collects laboratory-grade water, which is ready for use immediately.
Safety Mechanism
A low water cutoff prevents dry burning of the heating coil.
Benefits of Double Distillation Unit
- Distilled water, laboratory grade, high-purity
- It removes dissolved salts, minerals, and contaminants.
- Increases analytical accuracy and research reliability
- Suitable for pharmaceutical and research labs.
- Quartz components provide good resistance to heat and many chemicals, supporting reliable operation when properly maintained.
- Easy to use and maintain
- Consistent, dependable performance
- Lowers contamination risks
- Economical for long-term laboratory use
Applications
- The double distillation units are widely used in:
- Pharmaceutical labs
- Biotechnology labs
- Chemical test laboratories
- Research centres
- Schools and colleges
- Food & beverage testing labs
- Environmental labs
- Quality control laboratories
- Diagnostic labs and healthcare
Single vs Double Distillation Unit
| Feature | Single Distillation | Double Distillation |
| Distillation stages | One | Two |
| Purification | One evaporation-condensation cycle | Two successive cycles |
| Water quality | Suitable for general laboratory applications | Higher purity for applications requiring additional purification |
| Processing time | Generally shorter | Generally longer |
| Energy use | Generally lower | Generally higher |
| Typical use | Routine laboratory work | Applications requiring additional purification |
Guide to Buying Double Distillation Plant
In case you want to buy a double distillation plant, here are some main factors you should pay attention to:
- Intended output capacity of water (liters per hour)
- Quality of the quartz material
- Heating effectiveness
- Safety aspects
- Cooling water requirements
- Energy consumption
- Maintenance
Technical support and availability of spare parts
Experience and reliability of the company that makes the equipment
Choosing an experienced manufacturer can help ensure appropriate equipment selection, technical support, spare-parts availability and dependable long-term operation.
Why Go for Bionics Scientific?
Bionics Scientific provides laboratory water distillation systems for pharmaceutical, research, educational and quality-control applications. Equipment selection can be based on required output, water quality requirements, construction materials, safety features and available technical support.
Our systems are made from top-quality quartz parts, precise manufacturing, and superior safety measures; thus, we guarantee high efficiency and durability. Our water distillation systems offer easy use, reliable water purity, and reduced maintenance costs.
In case you need a small-scale lab water distillation system or a larger capacity system, Bionics Scientific provides quality equipment and technical support.
Certifications & Quality Compliance
| Standard | Cert. No. | Scope | Valid Until |
| ISO 9001:2015 (QMS) | 184876 | Lab, scientific & cleanroom equipment mfg. | 30-03-2029 |
| CE (MDD 93/42/EEC) | 184877 | Products as per annexure | 30-03-2029 |
| GMP | 184878 | Includes fume hood and a biosafety cabinet. | 30-03-2029 |
| NSF/ANSI 61 | 183884 | Bio-safety cabinet, lab & scientific equipment | 08-03-2027 |
Experts’ Advice
Make sure you have a reliable water source to avoid any scaling within the boiler.
Always clean your quartz chamber so that it works efficiently.
Make sure there is always water for cooling while running.
Check your heaters for efficiency.
FAQs
Definition of Double Distillation Unit Diagram
This is the diagram that describes the parts and the water flow for the double distillation process.
Why choose double distillation instead of single distillation?
In double distillation, there is removal of more dissolved substances, and this gives more pure distilled water.
Why is a quartz double distillation unit preferable?
The quartz material is highly resistant to heat and chemicals; hence, it prevents any contamination in the process.
Where is a double distillation unit used?
This equipment is very common in pharmaceutical, biotech, chemical, education, health care, and research laboratories.
Which kind of water can be obtained using a double distillation unit?
High-quality laboratory distilled water.
Is the maintenance of the double distillation unit difficult?
No, it is not difficult to maintain a double distillation unit, as it needs cleaning of the quartz chamber regularly.
Which double distillation unit should I buy?
Select a double distillation unit according to the capacity of water output, laboratory needs, quality of material, safety, and manufacturers.
Does it contain any safety mechanism?
Yes, mostly all the double distillation units come with some safety mechanisms, such as low water cut-off and overheat protection.
Can a double distillation unit operate for long periods?
Yes, it will only require proper cooling water to be used for long durations of time.
Why should I purchase a double distillation unit from Bionics Scientific?
Because Bionics Scientific offers quality laboratory equipment along with technical assistance.
Conclusion
The double distillation unit diagram demonstrates clearly how the water in the laboratory can be purified through two different distillation processes. All components in this process, starting from the quartz boiler and condenser all the way to the output of the distilled water, are necessary for the production of quality water.
Selecting the right double distillation unit ensures accurate work in the laboratory and helps to protect experiments and achieve consistent results. Moreover, buying a quality unit from a reliable manufacturer saves on maintenance expenses in the long run.
