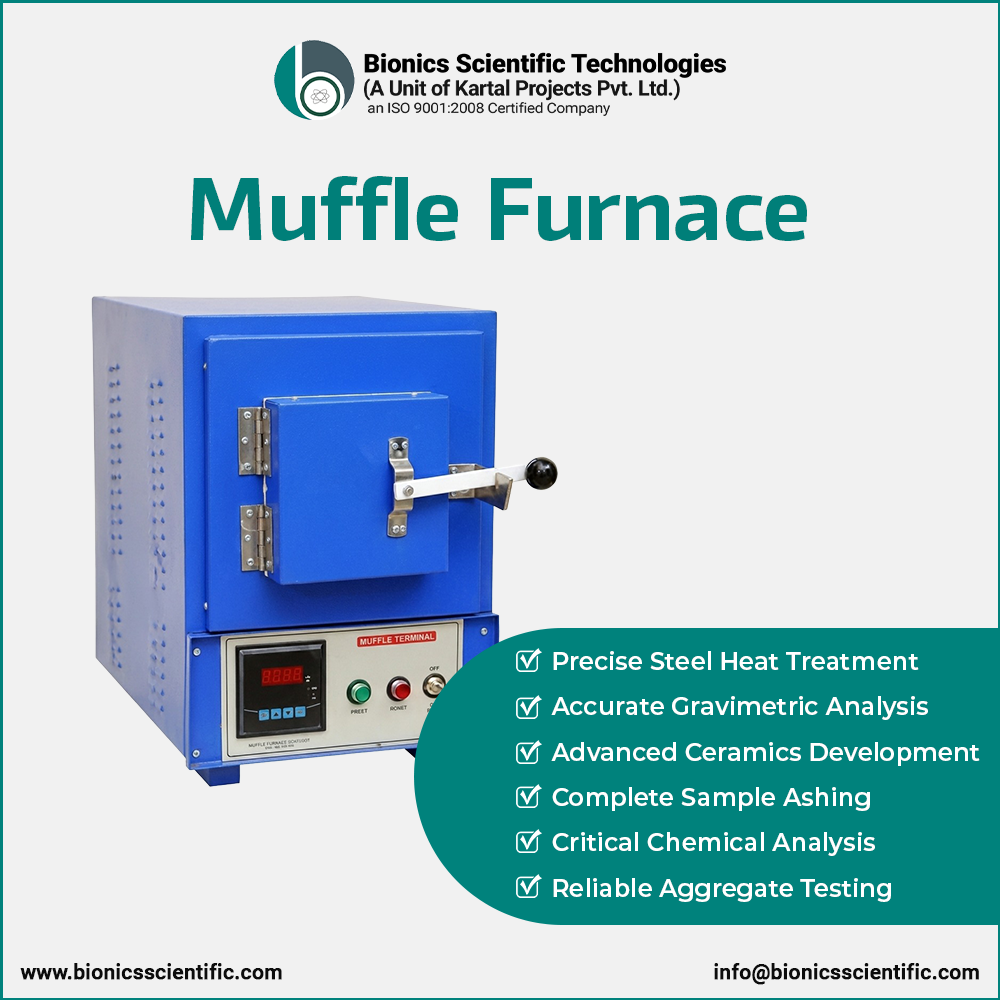

MUFFLE FURNACE

Best Lab Muffle Furnace Manufacturers in India Bionics Scientific is a Delhi based India's leading manufacturer of muffle furnaces for laboratory use with temperature range 800°C to 1800°C. As required, we provide both readymade (ready stock) and customized muffle furnace systems to our customers worldwide. These laboratory muffle furnace units are utilized in general purpose heating in laboratories, ashing tests on wool, rubber, fibers or fabrics, heat treatment requirements for gears and various research facilities in chemistry and physics.

Muffle Furnace Applications:

Ignition tests	Gravimetric analysis
Heat treating steel parts and Gears	Heat treating Gears
Coal sampling	Quench testing
Organic and inorganic ashing	Research facilities in chemistry
Chemical analysis	Annealing loss determination
soils & aggregates cement Testing	Development of coatings and ceramics
Glass blowing lab	Rice laboratory
Plastic tensile strength test	Stoneware samples firing

Muffle Furnace Features:

Sturdy construction for long term use	Compact in design and space saving
Available with 800°C to 1800°C temperature	Safe and trouble free performance
Microprocessor PID controller	Over temperature and short circuit breaker
High ceramic fiber blanket and board insulation	Ventilation or chimney at the back
Only branded heating elements are used	Uniform heating inside chamber
CE and ISO marked	Comply to DIN and ASTM standards

Muffle Furnace Temperature Range:

To meet unique needs of every application, our muffle furnaces or box furnaces are available in temperature range from 800°C to 1400°C (800°C, 1100°C, 1200°C and 1400°C), in addition, we also design and manufacture high temperature muffle furnace up to 1800°C (1500°C, 1600°C, 1700°C, and 1800°C)

Usability & Performance of Muffle Furnace

Usability is one of the major factors that one should look into while buying muffle furnace and with Bionics® Muffle Furnace systems you experience unmatched convenient working performance. All our electric muffle furnaces feature rust and corrosion free stainless steel housing, compact and light weight construction and branded heating elements and programmable PID controller, ensure safe operation every time.

Safety Features of Muffle Furnace

These muffle furnaces are microprocessor controlled programmable muffle furnaces that offer easy and safe operation even at high temperature. These systems are designed with your safety in mind. Multi-layered insulation keeps external surfaces (cabinet) cool to the touch. Door safety switch (optional accessory) stops power to heating elements when door is opened.

Data Recording

In order to keep the record for processing, these muffle furnaces can be optionally fitted with Digital Data Logger, Printer and Temperature Chart Recorder.

Technical Specifications of Muffle Furnace:

Model	BST/MF/900	BST/MF/1100	BST/MF/1450	BST/MF/1800
Max. Temperature	900°C	1100°C	1450°C	1800°C
Working Temperature	800°C	1000°C	1350°C	1700°C
Heating Element	Kanthal A-1		Silicon Carbide (SiC)	Molybdenum Silicide (MoSi2)
Temperature Accuracy	+/- 1°C (+/- 1.8°F)
Temperature Controller	PID controller
Display	LED / LCD Display
External Chamber Construction	MS w/ Powder Coating / 304 Grade Stainless Steel (Optional)
Internal Chamber Construction	Ceramic Board & Grooved Refractory Chamber as per Temp. Requirement
Insulation	Ceramic wool insulation
Alarm	Audible & Visual type
Power Supply	220 / 440 Volts
Certification	ISO, CE & GMP
Stabilizer	As standard
Optional Accessories	- Provision for Printer - Data logger - Safety switch on door - Temperature Chart Recorder - Extra port for gas - Extra heating element & rod with clips - Extra thermocouple - Tongs - Gloves

Standard Inner Chamber Sizes

Dimension (Inches)	4 x 4 x 9	5 x 5 x 10	5 x 5 x 12	6 x 6 x 12	8 x 8 x 12	12 x 12 x 12	18 x 18 x 18
Volume (Liter)	2	4	5	7	13	28	96

Muffle Furnace Accessories:

Chart Recorder	Tongs	Heating Element	Gloves

Commonly used in laboratories, muffle furnace used for testing attributes of different materials at accurate as well as extremely high temperature. Also known as retort furnace, it comprises of vented heating chamber, temperature controller and safety door switch for operator safety. We, at Bionics Scientific, are leading muffle furnace manufacturers in Delhi, India and deal in ISO Certified furnaces useful for a variety of purposes.

We deal in a variety of laboratory muffle furnace units, which are utilized in general purpose heating in laboratories, ashing tests on wool, rubber, fibers or fabrics, heat treatment requirements for gears and various research facilities in chemistry and physics. Dealing in furnaces suitable to work in temperature ranging from 800°C to 1800°C, we provide both readymade (ready stock) and customized muffle furnace systems to our customers worldwide. Being acting as a leading muffle furnace supplier in India, we ensure to offer the premium quality of muffle furnace to our worldwide customers at reasonable prices with assurance of timely delivery.

Why Bionics for Muffle Furnace?

You might ponder over the fact why we consider ourselves as one of leading muffle furnace manufacturers not only in Delhi but in PAN India. The factors which make our products highly sought-after are:

• High quality products with manufacturer’s warranty
• Available in different working sizes
• Sturdy Construction with safety devices
• Customization feature
• Available in various temperature range (800°C to 1800°C)
• Corrosion resistant exterior and interior

If you are interest in buying Bionics® Muffle Furnace or quotation, please write us an email, our support team will assist you. We are committed to build a healthy muffle furnace business relationship through quality products and services.
