Coefficient of Friction Tester
Testing equipment for evaluating friction between suitable material surfaces.
Select a configuration according to the material, test method, load requirements and reporting needs.

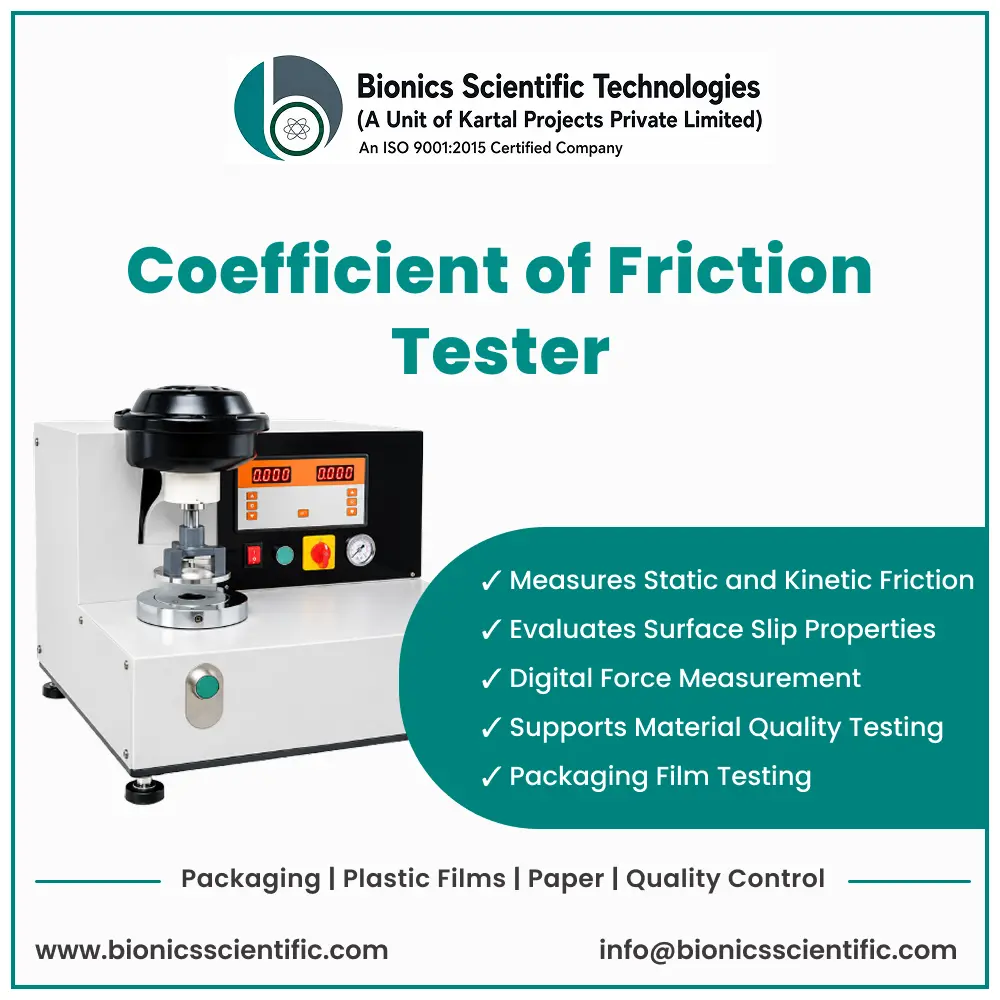

Coefficient of Friction Tester for Material and Packaging Testing
Bionics Scientific Technologies offers scientific and testing equipment for quality-control and material-testing applications. A coefficient of friction (COF) tester is used to evaluate the frictional behaviour between two surfaces under defined test conditions. Depending on the instrument and method, it can help determine static friction, which relates to the force needed to initiate movement, and kinetic friction, which relates to resistance while surfaces slide.
COF testing is used for suitable materials such as plastic films, flexible packaging, paper, board and other sheet materials when the selected instrument and test method are appropriate. Before selecting an instrument, confirm sample dimensions, test load, travel distance, test speed, applicable standard, result units and data-recording requirements with the supplier.
What Is a Coefficient of Friction Tester?
A coefficient of friction tester measures the resistance to sliding between two material surfaces. The coefficient is a dimensionless value calculated from the measured friction force and the applied normal force, according to the applicable test method. The result helps compare surface behaviour and assess consistency between samples or production batches.
Working Principle of a Coefficient of Friction Tester
In a typical test, a specimen is secured on a horizontal test platform and a sled or specified contact surface is placed on it. The instrument moves one surface relative to the other under controlled conditions and measures the force required to start or maintain sliding. The recorded force is used to determine static and/or kinetic coefficient of friction according to the chosen procedure. Specimen conditioning, contact surfaces, load, speed and calculations must follow the applicable standard.
Applications of Coefficient of Friction Testing
- Plastic films and flexible packaging materials
- Paper, paperboard and coated sheet materials
- Packaging development and quality-control laboratories
- Comparison of surface slip properties between material batches
- Incoming-material inspection and production quality checks
- Research and development for suitable sheet materials
Static vs. Kinetic Coefficient of Friction
| Parameter | Meaning | What It Helps Evaluate |
|---|---|---|
| Static coefficient of friction | Resistance measured as sliding begins | The force required to initiate movement between surfaces |
| Kinetic coefficient of friction | Resistance measured while surfaces are sliding | Surface behaviour during continued movement |
Key Factors When Selecting a COF Tester
| Selection Factor | What to Confirm |
|---|---|
| Test material | Film, paper, board or another material compatible with the instrument and method. |
| Applicable test method | The standard or documented internal procedure required by your laboratory. |
| Test load and sled | Required load, contact surface and specimen arrangement. |
| Speed and travel | Movement speed, test distance and control options required by the procedure. |
| Measurement and reporting | Force range, coefficient calculation, display, data export or printer options, if available. |
| Calibration and support | Calibration needs, documentation, training and after-sales support. |
Why Is COF Testing Important in Quality Control?
Friction measurements help teams assess how materials interact during handling, converting, stacking or packaging operations. Consistent testing can support material comparison, supplier evaluation and investigation of changes in surface performance. Results depend on the test method and conditions, so measurements should be compared only when sample preparation and test parameters are suitably consistent.
What to Share for a Product Recommendation
- Material type, thickness and sample dimensions
- Whether static COF, kinetic COF or both are required
- Applicable test standard or internal procedure
- Required load, speed and test travel, if specified
- Display, data export, reporting and calibration requirements
- Quantity, delivery location and special laboratory requirements
Frequently Asked Questions
What does a coefficient of friction tester measure?
It measures friction between two surfaces under defined test conditions and can be used to determine static and/or kinetic coefficient of friction, depending on the instrument and method.
What is the difference between static and kinetic COF?
Static COF relates to the resistance as sliding begins, while kinetic COF relates to resistance during continued sliding.
Which materials can be tested?
Common applications include suitable plastic films, flexible packaging, paper and board. Confirm compatibility with the instrument and the applicable test procedure before testing other materials.
Why is coefficient of friction testing used for packaging?
It helps evaluate surface slip behaviour and compare material batches, which may be relevant to handling, converting and packaging processes.
How do I choose the right COF tester?
Consider the material, test method, load, speed, sample size, static or kinetic measurement needs, reporting features and calibration requirements. Confirm the selected model's specifications before ordering.
Request Coefficient of Friction Tester Details and Quotation
Share your material type, required test method, static or kinetic COF requirements and reporting needs so the team can help identify a suitable configuration and provide current product details.
