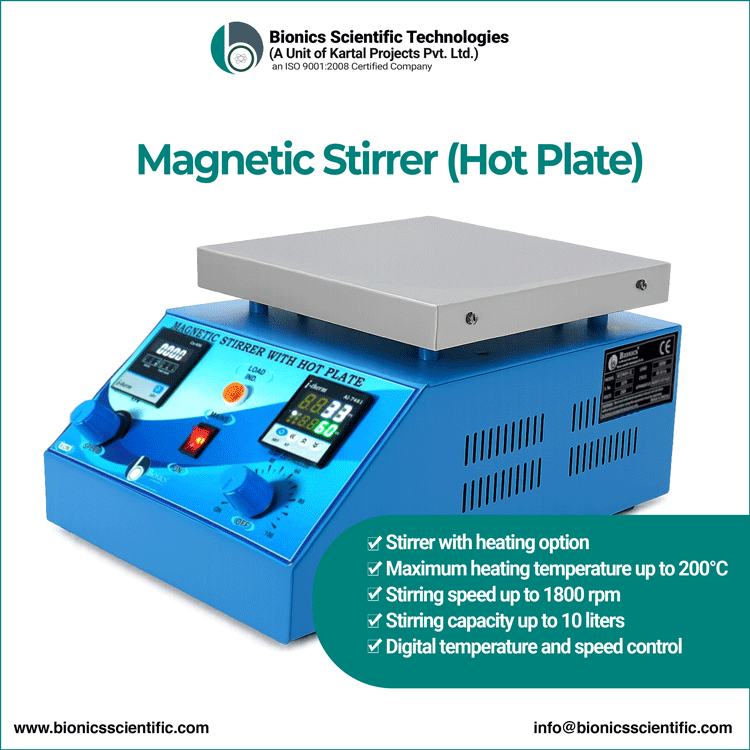

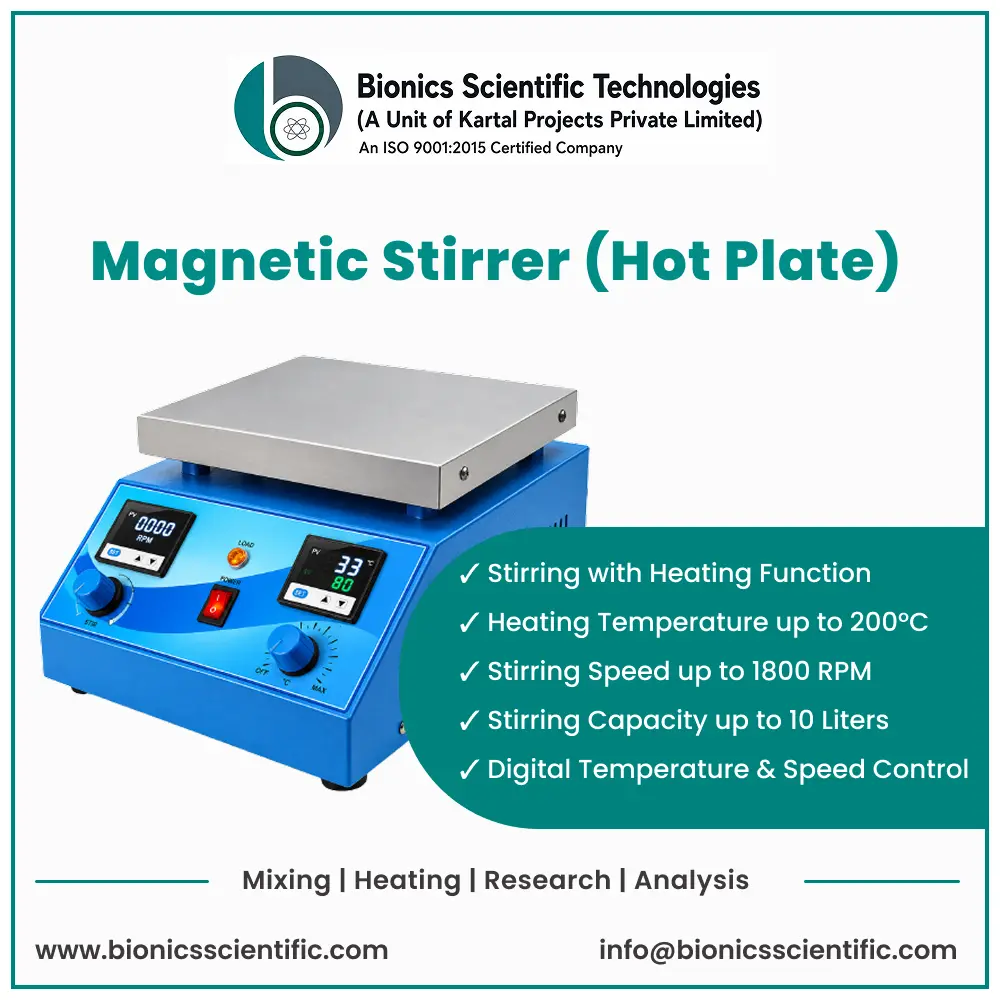

Magnetic Stirrer with Hot Plate Manufacturer – With and Without Heating, 500 ml to 10 L

Magnetic Stirrer with Hot Plate for Laboratory Use

In short: we make laboratory magnetic stirrers with and without a hot plate. The heated models (BST/MSH31, 32 and 33) stir 2, 5 or 10 litres at up to 1800 rpm and heat up to 200°C, with 300°C and 500°C as options. The unheated models (BST/MS-51 to 54) cover 500 ml to 10 litres.

A magnetic stirrer saves you from standing over a beaker with a glass rod. Drop a magnetic bar into the vessel, set the speed, and the liquid mixes on its own. Add a hot plate and you can heat the same vessel at the same time, which is why a heated stirrer is the everyday workhorse for dissolving and mixing in most labs.

Bionics Scientific is a Delhi-based, ISO certified manufacturer and supplier of laboratory magnetic stirrers, serving buyers across India and overseas. Speed and temperature controls sit on the front panel, and the standard housing is painted MS steel, with stainless steel housing available as an option. We can also tailor a unit to your needs, so please share your temperature range, material of construction, type of controls and any other requirement. If you need a stirrer that changes direction as it stirs, take a look at our auto reverse magnetic stirrer.

Key Features

  • Choice of heating: available with a hot plate or without one.
  • Heating up to 200°C: with 300°C and 500°C available as options on the hot plate models.
  • Stirring speed up to 1800 rpm, and stirring capacity up to 10 litres.
  • Digital temperature and speed control on the front panel, with an on / off power switch.
  • Stainless steel stirring plate with a powder-coated MS housing, or stainless steel housing as an option.
  • Magnetic bar and instruction manual supplied with the unit.
  • Optional extras: PID controller, digital timer, support stand and IQ / DQ / OQ / PQ certifications.

Which One Do You Need: With or Without a Hot Plate?

The question to ask is whether your sample needs warming. If you heat as well as stir, for example while dissolving a solid, take the hot plate model. If you only mix at room temperature, a model without a hot plate does the job, and it gives you smaller sizes down to 500 ml.

After that, match the size to your vessel and volume. The stirring plate gets bigger with capacity, from 4 x 4 inches on the smallest unheated model to 11.5 x 11.5 inches on the 10 litre models. If you need to mix a thick sample or run several vessels at once, you may also want an overhead stirrer or a multi-position magnetic stirrer.

Magnetic Stirrer with Hot Plate Specifications

ModelBST/MSH31BST/MSH32BST/MSH33
Stirring capacity2 litres5 litres10 litres
Stirring top size6 x 6 inches8.5 x 8.5 inches11.5 x 11.5 inches
Speed1800 rpm
Temperature200°C
ControllerSpeed and temperature controller
ConstructionStirring plate: stainless steel
Housing: MS powder coated
AccessoriesMagnetic bar, instruction manual
Optional
  • Temperature up to 300°C and 500°C
  • PID controller
  • Digital timer
  • Support stand
  • Stainless steel housing
  • IQ / DQ / OQ / PQ certifications

Magnetic Stirrer without Hot Plate Specifications

ModelBST/MS-51BST/MS-52BST/MS-53BST/MS-54
Stirring capacity500 ml2 litres5 litres10 litres
Stirring plate size4 x 4 inches6 x 6 inches8.5 x 8.5 inches11.5 x 11.5 inches
Stirring plate materialStainless steel
Speed0 to 1800 rpm
Speed controlRotary speed regulator
HousingMS sheet powder coated
Power supply220 / 230 V, 50 Hz
AccessoriesMagnetic bar and manual
Optional
  • PID controller
  • Stainless steel housing
  • IQ / DQ / OQ / PQ certifications

Please confirm the power supply of the hot plate models, the exact options for your model and the lead time with our team before ordering.

How a Magnetic Stirrer Works

Inside the base there is a rotating magnet. You place a magnetic bar in your beaker or flask, and as the magnet turns under the plate, the bar spins in the liquid and mixes it. On a hot plate model, the plate also heats the vessel, and the controls on the front panel let you set the speed and the temperature separately.

Types of Magnetic Stirrers

You will see a few different kinds of magnetic stirrers in the market. Here is a quick guide to what each one is for. Our standard range is the one listed in the tables above, so please ask us if you need something different.

  • Mini stirrer: compact and takes little bench space, with a speed regulator for precise control.
  • Stirrer with timer: switches the motor off automatically once the time you set is over.
  • Heavy-duty stirrer: built for high mixing power and chemical resistance, and used in laboratories and production areas.
  • Battery powered stirrer: works without a mains socket, for example inside an incubator.
  • Air operated turbine stirrer: stirs up to one litre, and avoids the sparking risk of an electrical source.

Why Choose Bionics Scientific?

Bionics Scientific has been making laboratory equipment for 26 years, and we operate as a unit of Kartal Projects Private Limited in Delhi. We supply PAN India and overseas, and our engineering team can discuss your temperature range, material of construction and controls and send a price list.

Our Certifications

The certificates below are held by Kartal Projects Private Limited and issued by Euroglobe Registrars. Each one can be verified with Euroglobe Registrars using its certificate number.

CertificateCertificate no.ScopeValid until
ISO 9001:2015 Quality Management System184876Products as per annexure, which lists laboratory stirrers & hot plates30-03-2029
CE – Directive MDD 93/42/EEC184877Technical file; products as per annexure30-03-2029
GMP (Good Manufacturing Practices)184878Products as per annexure, which lists laboratory stirrers & hot plates30-03-2029
NSF/ANSI 61183884Manufacture and supply of bio-safety cabinet, laboratory equipment and scientific equipment08-03-2027

Certificate scope is as stated on each certificate. Please ask our team for the annexure covering the model you plan to buy.

Looking for a Laboratory Magnetic Stirrer?

Tell us the volume you stir, the temperature you need and any options you want. We will send product details, technical specifications and a quotation.

Request a Quote Call +91 9111161955

You can also use the enquiry form on this page, browse the full stirrer and hot plate range, or email info@bionicsscientific.com.

Magnetic Stirrer FAQs

What is a magnetic stirrer with hot plate?

It is a laboratory unit that stirs a liquid with a magnetic bar and heats the vessel at the same time.

What is the maximum heating temperature?

Standard models heat up to 200°C. Temperatures up to 300°C and 500°C are available as options.

What stirring capacities are available?

Hot plate models stir 2, 5 or 10 litres. Models without a hot plate stir 500 ml, 2, 5 or 10 litres.

What is the maximum stirring speed?

Up to 1800 rpm.

What is the housing made of?

Standard housing is powder-coated MS. Stainless steel housing is available as an option, and the stirring plate is stainless steel.

What optional features are available?

Options include a PID controller, digital timer, support stand, stainless steel housing and IQ / DQ / OQ / PQ certifications, depending on the model.

What is supplied with the stirrer?

A magnetic bar and an instruction manual.

What power supply is needed?

Models without a hot plate are listed for 220 / 230 V, 50 Hz. Please confirm the supply for hot plate models with our team.
