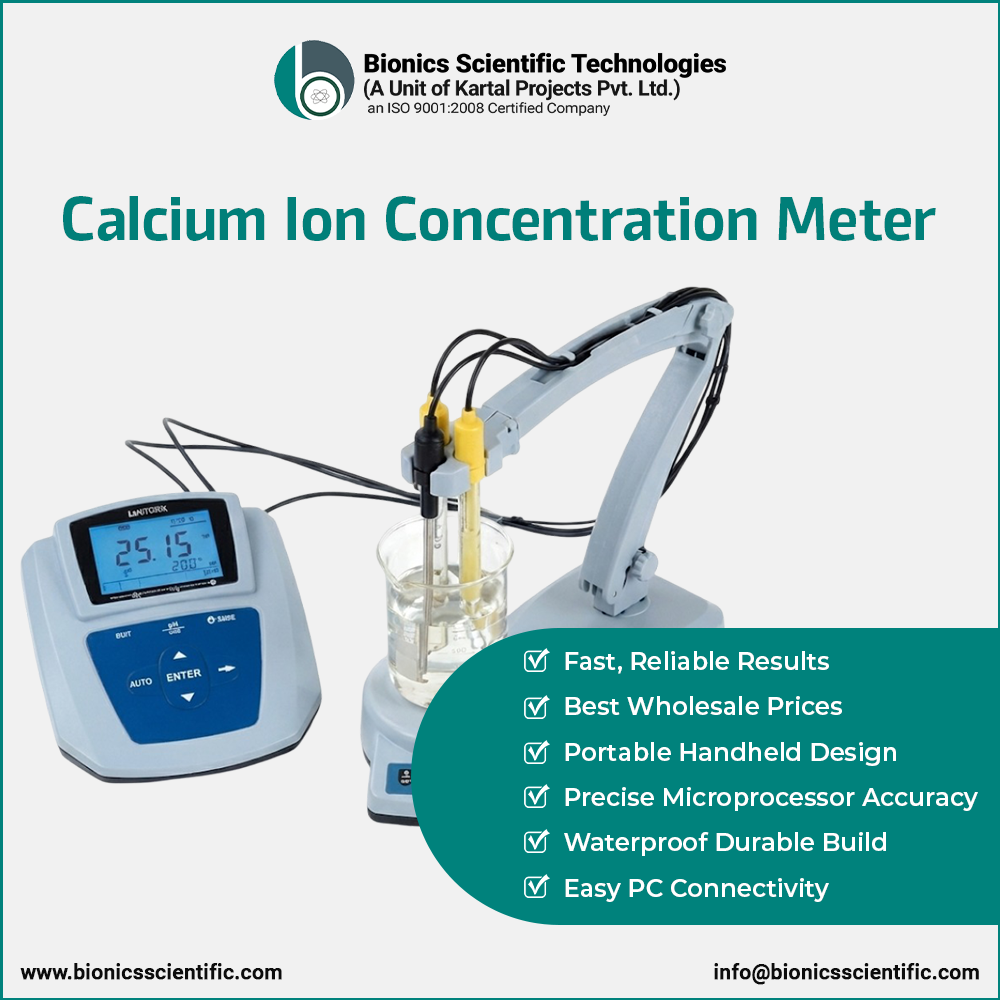

Calcium Ion Concentration Meter
Portable Calcium Ion Meter for Aqueous Solution Testing
A calcium ion concentration meter is used to measure calcium ion (Ca2+) concentration in aqueous solutions. This portable instrument is suitable for laboratory testing, water analysis, research and other applications requiring calcium ion measurement.
The meter supports calcium ion measurement in pCa, mol/L, mg/L and ppm modes. It also provides automatic temperature compensation and a large backlit LCD display to support routine measurement and monitoring.
The BST-CIM9 is a microprocessor-based calcium ion meter designed for portable measurement of calcium ions in aqueous solutions. It supports programmable measurement functions, data storage and connection to a computer through the specified communication interface.
Calcium Ion Concentration Meter Features
| Large LCD display w/ backlit | Large display fonts for easy reading |
| Water proof display and keyboard | Information display bar for functions |
| Data can be transferred to PC | Storage memory for up to 99 data sets |
Additional Features and Measurement Functions
The meter supports a two-point automatic calibration function. Users can follow the on-screen prompts to complete the calibration process with the appropriate electrode and calibration solution.
The meter features automatic temperature compensation (ATC) to support calcium ion measurements across the specified operating temperature range.
Temperature units can be selected in degrees Celsius (°C) or Fahrenheit (°F) according to the measurement requirements.
Measurement results can be displayed in pCa, mol/L, mg/L or ppm according to the required measurement mode.
An information bar displays the current instrument status and provides prompts to assist users during the measurement process.
The meter can store up to 99 data sets. Measurement data can be transferred to a computer using the specified RS-232 communication interface.
The meter features a waterproof display and keyboard to provide protection against accidental liquid spills during routine use.
The large backlit LCD display uses clear, large fonts to make measurement readings easier to view in different lighting conditions.
Calcium Ion Concentration Meter Specifications
| Model | BST-CIM9 |
|---|---|
| Product | Calcium Ion Concentration Meter |
| Measuring Parameters | pCa, mol/L, mg/L and ppm |
| Ca2+ Range | (0.00 to 9.00)pCa |
| Ca2+ Accuracy | ±0.01pCa |
| mV Range | ±1999.9mV |
| mV Accuracy | ±0.1% full scale |
| Temperature Range | (-10 to 110)°C |
| Temperature Accuracy | ±0.5°C |
| ATC | (0 to 50)°C |
| Storage Memory | 99 sets |
| Communication Connector | RS-232 |
| Display | Large LCD Display w/ backlit |
| Accessories | - Calcium ion electrode - Reference electrode - Temperature probe - Intelligent stirrer - Flexible electrode holder - Instruction Manual - RS-232 communication software |
| Power | DC 9V/300mA |
| Certifications | CE & ISO |
Need help selecting a calcium ion concentration meter? Contact our team to discuss your measurement range, application and testing requirements.
