Digital Vibration Meter Manufacturer & Supplier in India

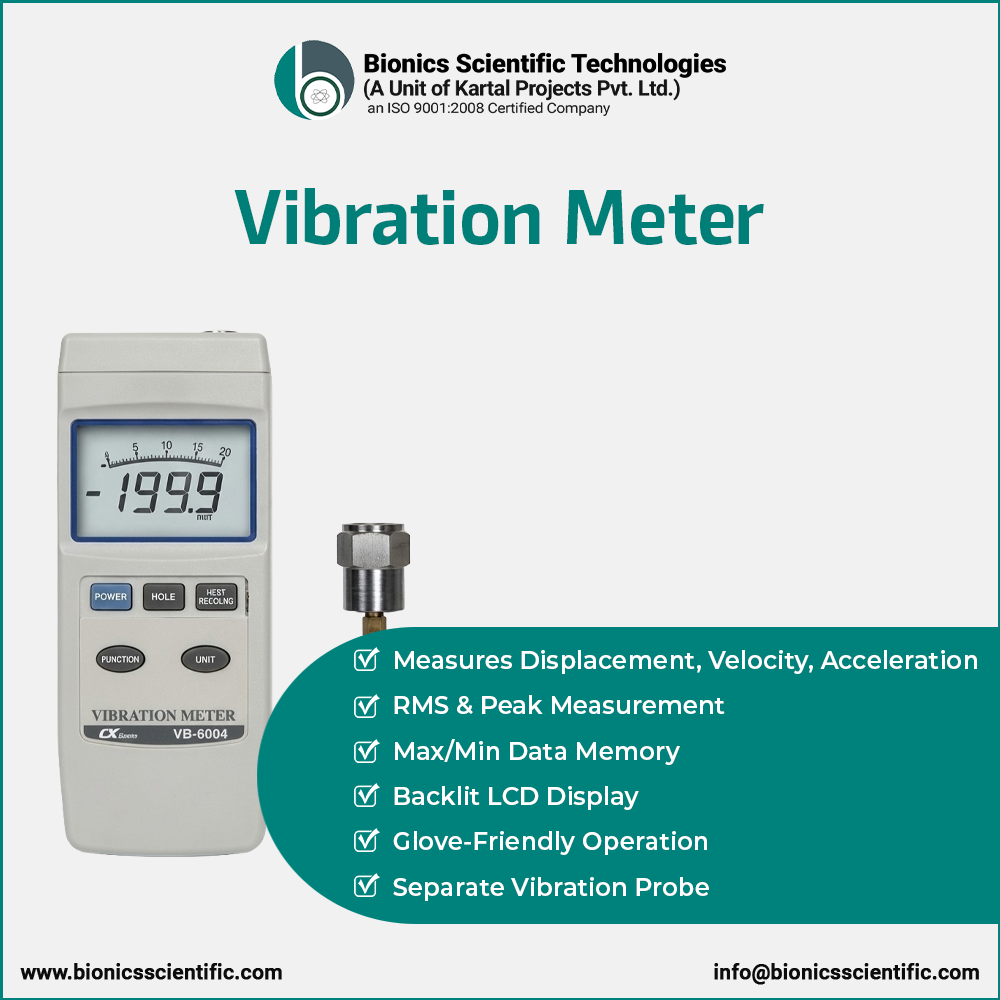

Digital Vibration Meter for Machine Condition Monitoring

Bionics Scientific is a leading digital vibration meter manufacturer and supplier in India. Our portable vibration meters provide accurate on-site measurement for machine maintenance, condition monitoring and performance testing.

The instrument measures acceleration (ACC), velocity (VEL) and displacement (DISP) across suitable frequency ranges for comprehensive evaluation of machine vibration. It is suitable for monitoring motors, pumps, bearings, fans, compressors and other rotating machinery.

Features include a compact design, data backup, computer connectivity and long continuous operation. Bionics Scientific supplies digital vibration meters throughout India and exports them to customers across Africa, Asia and the Middle East.

Digital Vibration Meter Features

Measurement of displacement / acceleration / velocity	RMS & Peak measurement.
Easy to use buttons even with gloved hands	Data hold, Memory (Max. & Min)
Separate vibration probe	Easy to read LCD display w/ Back-lit

Specifications:

Model No	BST-VS-8220
Display	61 mm x 34 mm supper large LCD Display. 15 mm (0.6") digit size.
Measurement	Velocity, Acceleration RMS value, Peak value, Data hold, Max. & Min. value.
Range	Velocity: 200 mm/s : 0.5 to 199.9 mm/s
	Acceleration: 200 m/s2 : 0.5 to 199.9 m/s2
Frequency Range	10 Hz to 1 KHz(Sensitivity relativive during the frequency range meet ISO 2954)
Accuracy	± ( 5 % + 2 d ) reading @ 80 Hz, 160 Hz. 185 x 78 x 38 mm @ 23 ± 5 Deg C
Calibration Point	Velocity : 50 mm/s (160 Hz)
	Acceleration : 50 m/s2(160 Hz)
Circuit	Exclusive microcomputer circuit.
Data hold	Freeze the desired reading.
Peak Measurement	To measure the peak value.
Power off	Auto shut off, saves battery life, or manual off by push button.
Memory	Maximum & Minimum value.
Sampling time	Approx. 1 second.
Operating Temperature	0 to 50 Deg C ( 32 to 122 Deg F).
Operating Humidity	Less than 80% RH.
Power Supply	Alkaline or heavy duty type, DC 9V battery, 006P, MN1604 (PP3) or equivalent.
Power Consumption	Approx. DC 6 mA.
Accessories Included	Vibration sensor ( VB-81A) ……….1 PC.
	Cable ……….1 PC.
	Magnetic base ………1 PC.
	Carrying Case ……….1 PC.
