Soxhlet Extraction Unit Manufacturer in India

Soxhlet Extraction Units for Fat, Oil and Solute Extraction

A Soxhlet extraction unit pulls fat, oil or other soluble compounds out of a solid sample by washing it again and again with fresh, condensed solvent. Bionics Scientific manufactures these units with mantle, hot plate or water bath heating, in models with 1, 3, 4 or 6 positions. Flask sizes run from 50 ml to 1000 ml, depending on the model.

We have been making laboratory equipment in India for 26 years. Our Soxhlet units go to food testing labs, pharmaceutical research groups, universities, chemical and oil testing labs and industrial quality control departments. They are used on grains, oil seeds, food materials, soil, polymers, biofuel samples and other research material.

Each unit is supplied with the heater, glassware, stand, rods and tubes. Clamps and a cooling manifold come with it as well, depending on the model. Flask capacity, heating arrangement, controller type, stand design and accessories can be changed to suit your method.

How Soxhlet Extraction Works

  1. The sample sits in a porous thimble inside the extraction chamber, above the boiling flask.
  2. The heater warms the solvent in the flask until it boils.
  3. Solvent vapour rises to the condenser, cools and drips onto the sample.
  4. When the chamber fills to the siphon level, the solvent and what it has dissolved flow back into the flask.
  5. The cycle repeats until the extraction is complete. The extract collects in the flask while fresh solvent keeps washing the sample.

The method is slower than a one-time rinse, but it keeps the sample in contact with clean solvent the whole time, so it is the standard choice for fat and oil determination. How long to run it, and which solvent to use, is set by your test method.

Where Soxhlet Units Are Used

  • Food and edible oil testing laboratories
  • Fat extraction and oil determination in grains and oil seeds
  • Pharmaceutical and natural product research
  • Chemical analysis laboratories
  • Agricultural, soil and environmental testing
  • Universities and research institutes

Soxhlet Extraction Unit Models

Mantle Heater Models

Mantle heaters wrap around the flask and give controlled heating with flexible flask support. They come with 1, 3 or 6 heaters.

ModelHeatersEnergy regulators
BST/SXM-11One
BST/SXM-33Three
BST/SXM-66Six
BST/SXM-3A3One
BST/SXM-6A6One

Water Bath Models

A thermostatically controlled water bath heats the flask gently and evenly. It suits low-boiling solvents, and it keeps the flask from hot spots. Available with 1, 3 or 6 positions.

ModelHeatersEnergy regulators
BST/SXW-11One
BST/SXW-33Three
BST/SXW-66Six

Hot Plate Models

These use durable aluminium hot plates that reach up to 200 °C. Depending on the model, each position has its own regulator or all positions share one.

ModelHeatersEnergy regulator
BST/SX-1A1Single
BST/SX-7A3Common (single)
BST/SX-7B6Common (single)
BST/SX-7RA4Individual (four)
BST/SX-7RB6Individual (six)

Individual vs common regulator: with individual regulators each position is set separately, so you can run different heat levels at the same time. With a common regulator one setting drives all positions, which is simpler and works well when every sample runs the same method.

Mantle, Hot Plate or Water Bath: Which Heater?

HeaterGood forKeep in mind
MantleEven heating around the flask; flexible flask sizesMatch the mantle to the flask size
Water bathGentle, uniform heating for low-boiling solventsLimited by the boiling point of water
Hot plateHigher temperatures, up to 200 °CChoose individual regulators if samples need different settings

If you also need other heating and sample preparation equipment, see our hot plate stirrers, laboratory water baths and Kjeldahl digestion units.

Using a Soxhlet Unit Safely

  • Many extraction solvents are flammable. Work in a fume hood or a well-ventilated area and keep open flames away.
  • Check glassware for chips and cracks before each run.
  • Make sure cooling water is running through the condenser before you switch the heater on.
  • Do not fill the flask more than the method allows, and use boiling aids if your method calls for them.
  • Let the apparatus cool before taking it apart.

Follow your laboratory's safety procedure and the solvent's safety data sheet.

How to Choose a Soxhlet Extraction Unit

  • Positions: pick 1, 3, 4 or 6 based on how many samples you run each day.
  • Flask size: choose from your sample weight and solvent volume. Sizes run from 50 ml to 1000 ml, depending on the model.
  • Heater type: use the table above and your solvent's boiling point.
  • Regulators: individual if samples need different heat, common if they all run the same.
  • Customisation: tell us if you need a different stand, glassware or controller.

Need Help Choosing a Soxhlet Extraction Unit?

Tell us your sample type, flask size, number of samples per day and preferred heating. Our team will recommend a model and send a quotation with price and delivery details.

Request a Quote

Soxhlet Extraction Unit FAQs

What is a Soxhlet extraction unit?

It is laboratory apparatus for continuous solvent extraction from solid samples such as food, grains, oil seeds, soil and polymers.

How does Soxhlet extraction work?

Solvent is boiled, condensed onto the sample in a thimble, and siphoned back to the flask each time the chamber fills. The cycle repeats and the extracted compounds collect in the flask.

Which heating options are available?

Mantle heater, hot plate heater and water bath heater models are available.

How many samples can run at once?

Models have 1, 3, 4 or 6 positions, depending on the heating type.

What flask sizes are supported?

Flask capacities range from 50 ml to 1000 ml, depending on the model and configuration.

What does the unit include?

Each unit comes with the heater, glassware, stand, rods and tubes. Clamps and a cooling manifold are also supplied, depending on the model.

Can the unit be customised?

Yes. Flask capacity, heating arrangement, controller type, stand design, glassware and accessories can be customised.

How do I choose the right model?

Match the number of positions to your daily samples, the flask size to your sample and solvent volume, and the heater type to your solvent and method.

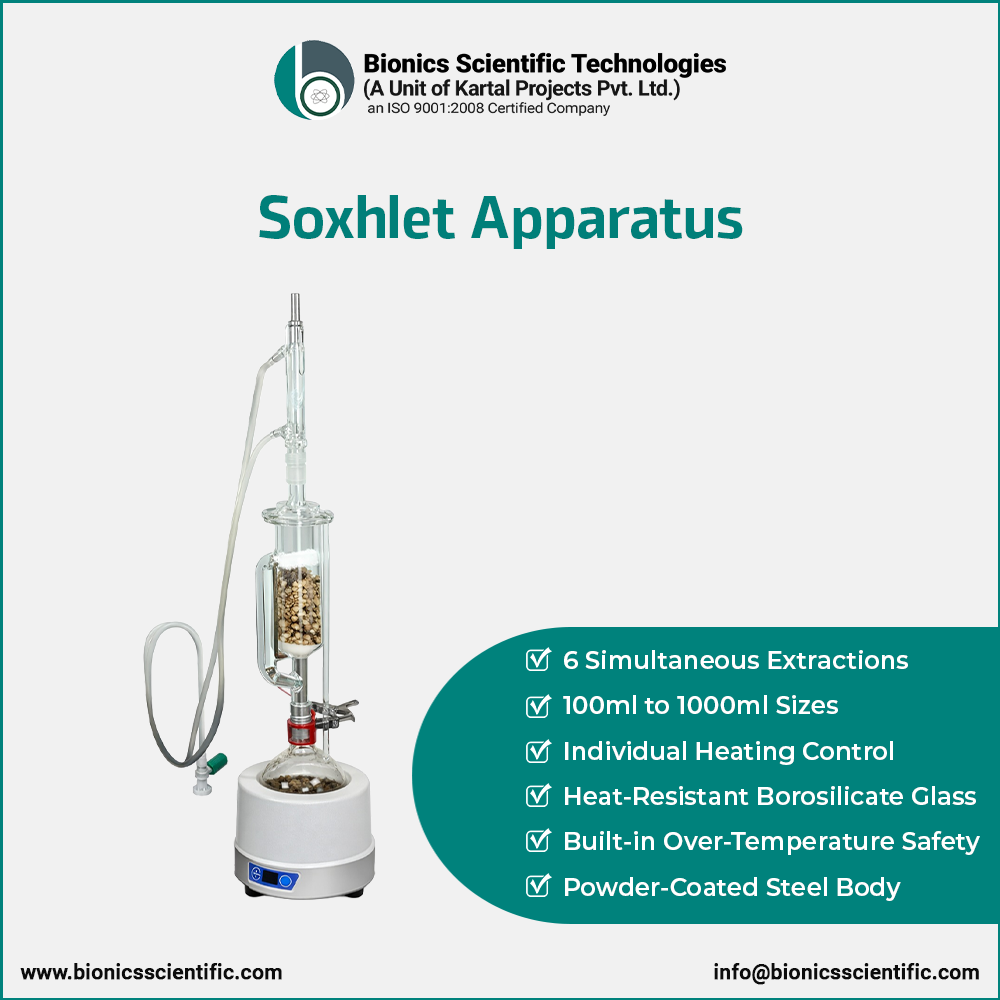

Soxhlet extraction unit with glassware and heater made by Bionics Scientific
