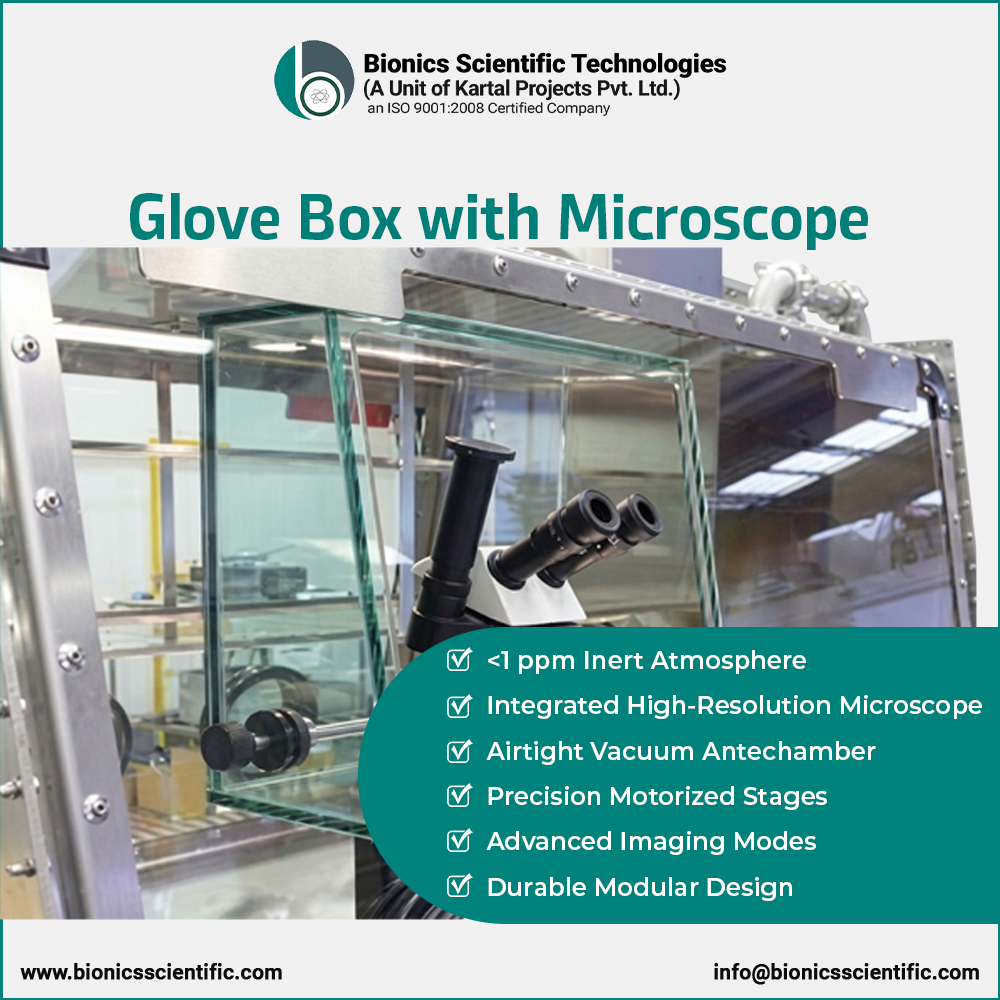

A glove box with a microscope lets you look at air- or moisture-sensitive samples without taking them out into room air. We are Bionics Scientific Technologies, a manufacturer with more than 35 years of experience. We fit a microscope to the glove box, or give you a microscope view port, so you can load your sample inside and observe it under a controlled environment.
Some samples change the moment they meet air or moisture. Loading them onto a microscope on an open bench can spoil the result. With a microscope built into or attached to the glove box, the sample stays in its protected space while you observe it. Our units allow precise control of environmental conditions for high resolution imaging.
Every unit is customised to your work. When you contact us for microscopic observation, you can choose one of two options:
The view port has a flexible or movable eyepiece, so you can look at your sample comfortably from outside the box.
Both models share one design and differ only in pressure control.
| Model | BST/GBM/VGB-2 | BST/GBM/VGB-2Y |
|---|---|---|
| Pressure Controller | No | Yes |
| Digital Vacuum Pressure Gauge | No | Range: 0 to 101 kPa (Absolute Pressure) |
| Valves | Three manual valves | Three manual valves Two solenoid valves |
| Microscope Fitting | Microscope view port with flexible or movable eyepiece | |
| Construction | Acrylic sheet | |
| Glove Box Dimension (mm) | 1150 L x 500 W x 500 H | |
| Containment Chamber (mm) | 875 L x 480 W x 500 H | |
| Air Lock Chamber (mm) | 230 L x 230 W x 230 H | |
| Plastic Thickness | 6 mm | |
| Side Door Size | 400 mm diameter | |
| Glove Port Size | 151 mm diameter | |
| Pressure Range | Main Chamber: 90 kPa to 120 kPa Air Lock Chamber: 10 kPa to 120 kPa | |
| Glove Ports | Two-Port Glove box (One Operator) | |
| Standard Accessories |
- Analog pressure gauge: 01 No. - Internal plug strip: 01 No. - Latex gloves: 01 pair | |
| Optional Accessories |
- Butyl rubber gloves - Three/Four-port glove box (same-side ports) - Four-port glove box (back-to-back ports) - Oil-free vacuum pump and fittings - Spare port (G 1/4 female) - Shelf - Extra internal plug strip - Arrangement for weighing balance / hot plate - Stand (powder coated MS / stainless steel) | |
Tell us which microscope you use, its size, and whether you want us to fit it or prefer a view port. Then tell us the atmosphere you need and how many people will work at the box. If you only need a simple box with no microscope, see our transparent acrylic glove box, or browse the full glove box range. For general background on how glove boxes work, this Lab Manager overview of glove boxes for isolation and containment is a useful read.
The price depends on the model, whether we fit your microscope or supply a view port, and the accessories you add. Because we manufacture the glove box ourselves, you get a factory price. Share your requirement and we will send a clear quotation.
It is a glove box with a microscope view port or a fitted microscope. You can observe air- or moisture-sensitive samples without exposing them to room air.
The price depends on the model, whether we fit your microscope or supply a view port, and the accessories. Share your requirement to get a quote.
Yes. We can fit your microscope inside the glove box, or supply a view port so your technician can fix the microscope.
It is a port in the glove box with a flexible or movable eyepiece. It lets you look at samples inside the box.
The 2Y adds a pressure controller, a digital vacuum pressure gauge (0 to 101 kPa) and two solenoid valves. The standard model does not have them.
The overall size is 1150 x 500 x 500 mm. The containment chamber is 875 x 480 x 500 mm and the airlock is 230 x 230 x 230 mm.
Options include butyl rubber gloves, extra glove ports, an oil-free vacuum pump, shelf, balance or hot plate arrangement, and a stand.
Yes. We are the manufacturer and supply across India and overseas. Contact us for supply and installation details.
Tell us your microscope, your sample type and the atmosphere you need. Our team will reply with a recommendation and a price.
