Laboratory Ball Mill Manufacturer in India

Laboratory Ball Mill Models and Capacities

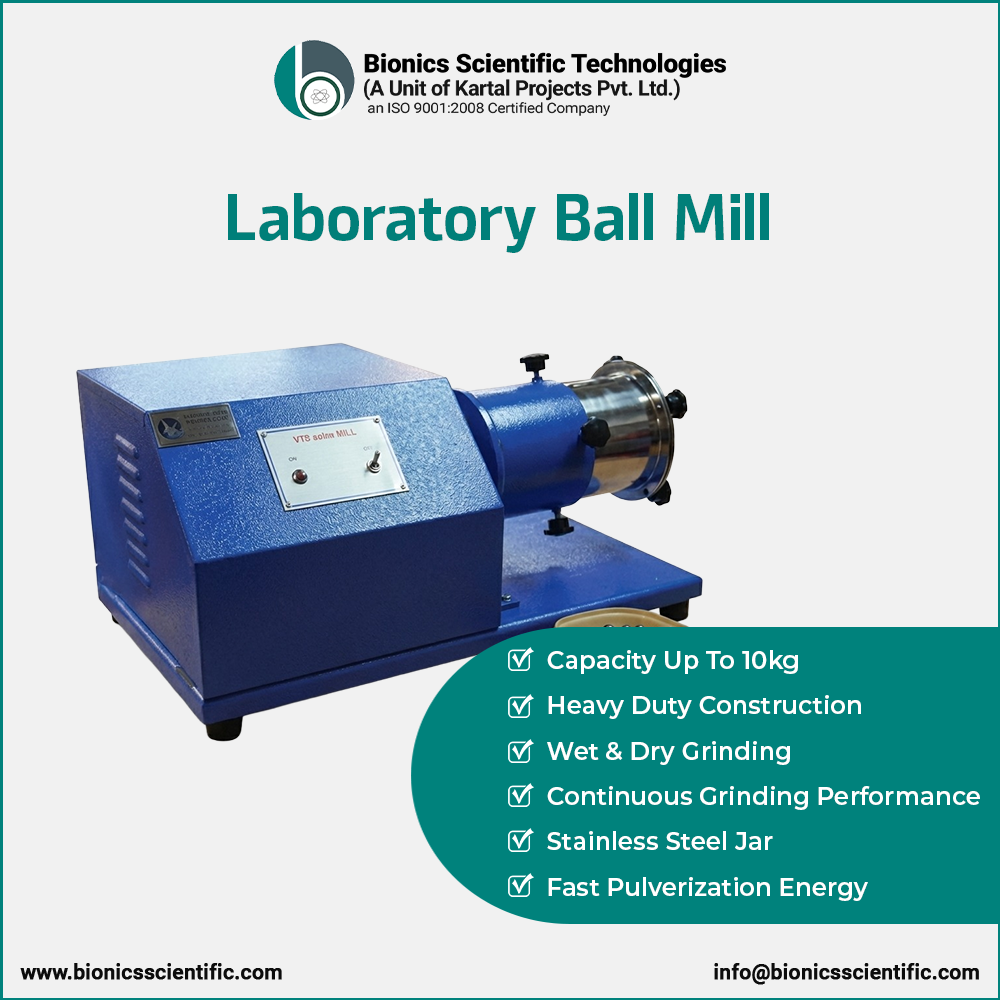

Laboratory Ball Mills are designed for grinding, mixing and particle-size reduction of laboratory samples. Bionics Scientific offers models in 1 Kg, 2 Kg, 5 Kg and 10 Kg capacities for wet and dry grinding applications, with steel grinding balls available in different sizes.

These ball mills are suitable for laboratory grinding, pulverizing and mixing applications. Their heavy-duty construction and grinding media support wet and dry processing of different sample materials for routine laboratory and material preparation work.

What is a Laboratory Ball Mill?

A Laboratory Ball Mill is a grinding and mixing machine designed to reduce the particle size of solid materials into fine powders. It consists of a rotating cylindrical jar filled with grinding media, where impact and friction break down materials uniformly. Laboratory ball mills are widely used for sample preparation, mineral processing, pharmaceutical research, ceramics, chemicals and material testing.

Laboratory Ball Mill Working Principle

A Laboratory Ball Mill works on the principle of impact and attrition. As the grinding jar rotates, the grinding balls continuously collide with the material, producing particle size reduction. For additional technical background on ball milling and mechanical size reduction, refer to Encyclopaedia Britannica's ball mill reference. Depending on the application, the equipment can be used for both wet and dry grinding.

Particle Size Reduction and Nanoparticle Applications

Laboratory ball mills can be used for particle size reduction in material preparation and research applications. For suitable materials and operating conditions, milling may also be applied to nanoparticle size reduction and processing of nanoparticulate matter. In specialized wet-milling applications, the process may support nanoparticle dispersion and dispersion into fluid, depending on the material, grinding media and required particle size.

Applications of Laboratory Ball Mill

Laboratory Ball Mill Features

Heavy duty construction	Steel grinding media balls
Stainless steel jar	Capacity up to 10 Kg
Continuous grinding operation	Intensive mixing of samples
Suitable for wet and dry grinding	Mixing and particle size reduction
Size reduction by impact and friction	High pulverization energy for short grinding times

---

Laboratory Ball Mill Specifications

Model	BST/BM-1	BST/BM-2	BST/BM-5	BST/BM-10
Capacity	1 KG	2 KG	5 KG	10 KG
Housing	Stainless Steel / MS Powder Coated
Jar Construction	Aluminum / Stainless Steel
Speed	80 rpm
Motor	FHP Geared Motor
Material feed size	< 10 mm
Final fineness	< 10 µm, for colloidal grinding < 1 µm
Grinding stations	1
Power Supply	220 / 230 Volts, 50Hz

Industries Using Laboratory Ball Mills

Why Choose Bionics Scientific?

• 35+ years of laboratory equipment manufacturing experience
• Available in 1 Kg, 2 Kg, 5 Kg and 10 Kg capacities
• Suitable for wet and dry grinding applications
• Heavy-duty construction with premium grinding media
• Customization available for research and industrial laboratories
• PAN India delivery and worldwide exports
• Technical support before and after sales

Frequently Asked Questions

Find answers to common questions about laboratory ball mills, grinding applications, working principles, specifications and model selection.
