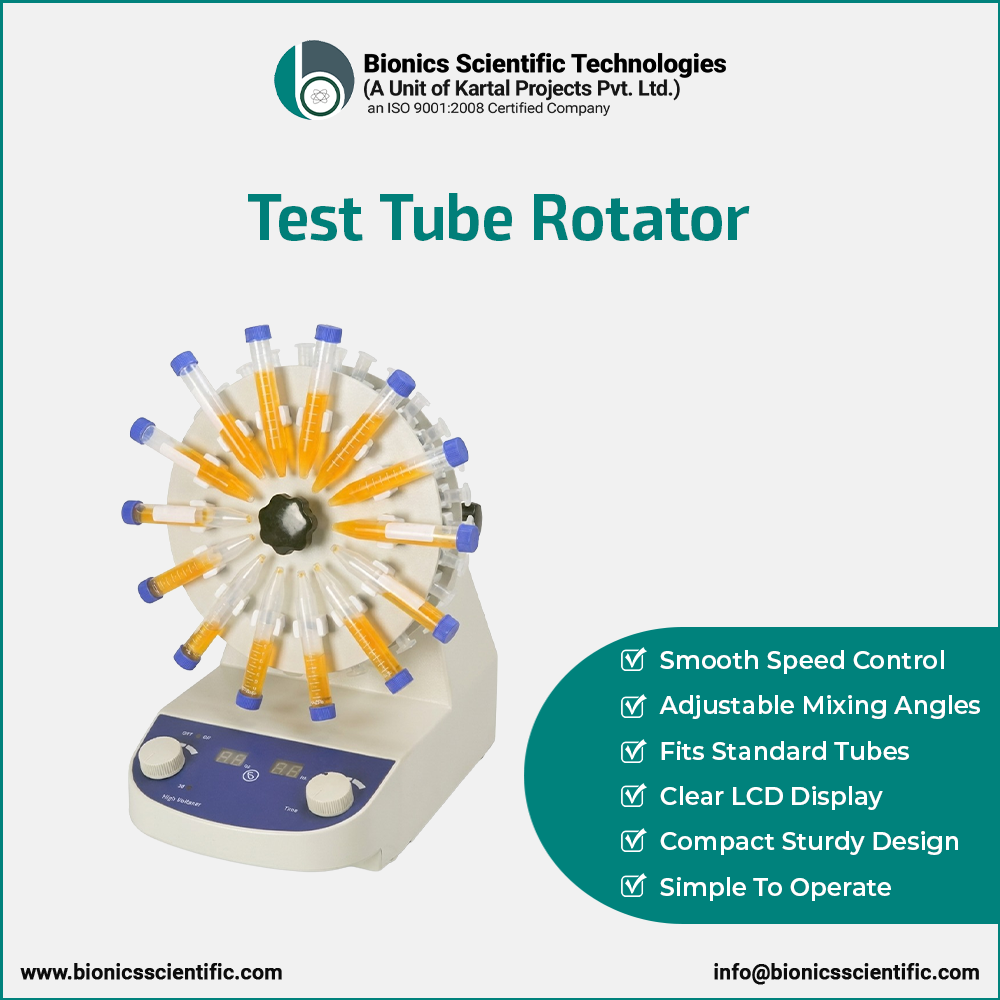

Laboratory Test Tube Rotator
Test Tube Rotator
Laboratory Test Tube Rotator is designed for gentle and controlled mixing of samples in test tubes by continuously rotating the tubes at a selected speed. It is suitable for routine laboratory, diagnostic and sample-mixing applications where consistent tube rotation is required.

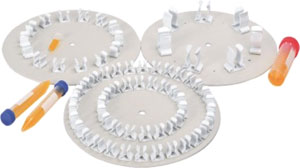

Model BST/HTR-02 is supplied with three interchangeable clip discs designed to accommodate different tube diameters. The clip discs can be removed and changed according to the tube size and mixing requirement.
Test Tube Rotator Features
| Compact laboratory design | Interchangeable clip discs |
| Three clip-disc size ranges | Adjustable rotation speed |
| 2–40 rpm speed range | LCD display |
| 0–99 minute timer | Suitable for gentle tube mixing |
Specifications:
| Model | BST/HTR-02 |
|---|---|
| Clip Discs | - ø10-11.5mm - ø12-18mm - ø20-38mm |
| RPM | 2 - 40 rpm |
| Display | LCD |
| Ambient Operating Range | 5°C - 60°C |
| Motor Power | 50 w |
| Timing range | 0-99 min |
| Overall size | 330 x226x360mm |
| Power Supply | 220 Volts 50Hz |
Applications of Test Tube Rotator
Laboratory test tube rotators are used for gentle and continuous mixing of samples in test tubes. Typical applications include:
- Gentle mixing of blood samples in laboratory and diagnostic workflows
- Routine mixing of samples in test tubes
- Continuous low-speed tube rotation
- Mixing applications requiring controlled rotation from 2 to 40 rpm
- Laboratory sample preparation and handling
For other laboratory mixing equipment, explore our Laboratory Mixers range.
For general laboratory quality and testing standards, you may also refer to the International Organization for Standardization (ISO).
Test Tube Rotator Manufacturer in India
Bionics Scientific manufactures and supplies laboratory test tube rotators for controlled and gentle sample mixing. Model BST/HTR-02 features an adjustable speed range of 2 to 40 rpm, an LCD display, timer control and interchangeable clip discs for different tube diameters.
For model availability, technical specifications and current pricing, contact Bionics Scientific with your required tube sizes, application and quantity.
Frequently Asked Questions About Test Tube Rotators
What is a test tube rotator used for?
A test tube rotator is used for gentle and continuous mixing of samples by rotating test tubes at a controlled speed. It can be used in routine laboratory, diagnostic and sample-preparation workflows.
What is the speed range of the BST/HTR-02 test tube rotator?
The BST/HTR-02 has an adjustable rotation speed range of 2 to 40 rpm, allowing the operator to select a suitable speed for the required mixing application.
Which test tube sizes can the rotator accommodate?
The BST/HTR-02 is supplied with three interchangeable clip-disc ranges for tube diameters of approximately 10–11.5 mm, 12–18 mm and 20–38 mm.
Can a test tube rotator be used for blood sample mixing?
It can be used for gentle mixing of blood samples in appropriate laboratory and diagnostic workflows. The required mixing procedure should be selected according to the sample and laboratory protocol.
Does the BST/HTR-02 have a timer?
Yes. The listed timing range for the BST/HTR-02 is 0 to 99 minutes, allowing a defined mixing duration to be selected.
Does the test tube rotator have a display?
Yes. The BST/HTR-02 specification includes an LCD display for operation and setting information.
How are different tube sizes fitted on the rotator?
Different tube diameters are accommodated using interchangeable clip discs. The appropriate disc can be selected according to the tube size required for the application.
What should I check before selecting a laboratory test tube rotator?
Consider the required tube diameter, rotation speed, mixing duration, sample type and laboratory workflow. These requirements can then be compared with the specifications of the selected rotator model.
