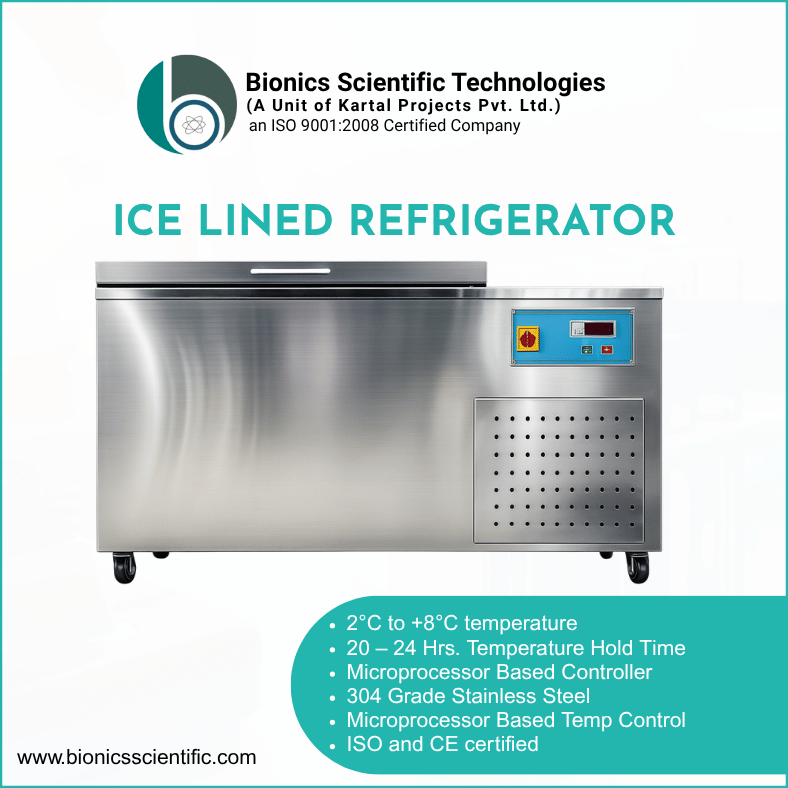

Ice Lined Refrigerator(ILR)

ILR for Vaccine & Blood Bag Storage – Capacity up to 300 Ltr or more

Ice Lined Refrigerators (ILR) are designed for highly safe vaccine and blood bags storage with temperature range from +2°C to +8°C. Our Ice Lined Refrigerators meet UNICEF / PQS / WHO blood safety guidelines and can be designed up to 300 Liters or more capacities. Ice Lined refrigerator units by Bionics Scientific are equipped with effective PUF insulation that ensures long hold-over time in case of power failure.

Along with readymade units 64 liters to 235 liters, we design, manufacture and supply Ice Lined Refrigerator in many other sizes, capacities and technical specifications as specified by our customers. Available at highly economical price, these units are supplied all over India also exported to various countries of Asia, Africa and Middle East.

Our Ice Lined Refrigerator (ILR) is a medical-grade refrigeration unit designed to store vaccines, blood bags, and other temperature-sensitive items between 2°C to 8°C. It features ice linings that help maintain cooling even during power outages, making it essential for cold chain logistics in healthcare settings.

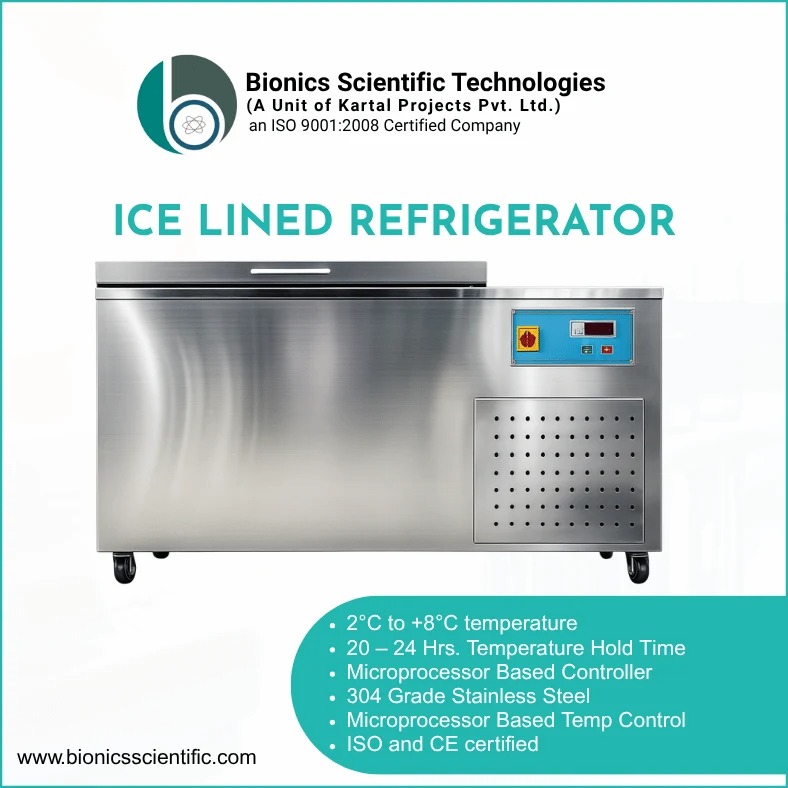

Ice Lined Refrigerator for vaccine storage

Features:

Meets WHO / UNICEF standardsChamber temperature range 2°C to 8°C
Ambient temperature range from 10°C to 43°CAmbient temperature range from 10°C to 43°C
Manual or Automatic defrostCFC free insulation and refrigerant
Long hold-over time in case of power failureCorrosion resistant construction
High contrast LED / LCD DisplayLockable Casters for easy mobility
Capacity up to 300 Liters or moreISO and CE certified

Features & Benifits

Temperature Range: +2°C to +8°C, which is controlled by a microprocessor-based digital temperature controller.

Ice Pack Compartment: Equipped with built-in ice packs to keep the chamber temperature within the 2°C to 8°C range at an ambient temperature of no warmer than 43 ℃ for up to 24 hours during loss of power.

Capacity: These systems are custom-designed and, depending upon customer requirements, these units are designed and developed from portable to large capacity sizes. Whether you need blood bag storage of 50, 100, 200 bags or more, these ice-lined refrigerators can be designed accordingly.

Construction: Rugged and designed of double-or triple-walled construction, the external chamber of these ice-lined refrigerator systems is made of galvanized or CRCA sheet finished with a bacteria-resistant coating. The inner chamber is made of 304-grade stainless steel whereas the middle chamber is made of galvanized steel. The gap between the two chambers is filled with thick PUF insulation. This effective insulation and the ice-lining ensure an exceptionally long hold-over time in case of power failure.

Doors: Doors play an important role in keeping blood and vaccines safe. The doors are solid and insulated. To keep unauthorized access away, these doors are also equipped with password-protected locking systems. Reliable rubber gasket ensures tight closure and efficient storage.

Casters: With a choice of customer, this equipment can be supplied with sturdy caster wheels that are lockable and make the equipment easy to move.

Optional Accessories:

Temperature data loggerTemperature Chart Recorder
Computer Interface & softwareData storage & print function
Alarm system with rechargeable battery backupAlarms for open doors, sensor faults, and condenser faults etc.
Automatic Voltage Stabilizer Dual door system with inner glass door

Specifications:

ModelBST-ILR64BST-ILR136BST-ILR218BST-ILR235
Gross volume64 Liters 2.3 cu. Ft.136 Liters 4.8 cu. Ft.218 Liters 7.7 cu. Ft.235 Liters 8.3 cu. Ft.
Net Volume48 Liters 1.6 cu. Ft.75Liters 2.6cu. Ft.105 Liters 3.7 cu. Ft.216 Liters 7.6 cu. Ft.
Dimensions (HxWxD) Inches33 x 28 x 2733 x 36 x 2733 x 50 x 2833 x 50 x 28
Chamber Temperature Range+2°C to +8°C
Ambient Temperature Range10°C to 43°C
Temperature Hold Time20 – 24 Hours
Temperature SensorPT - 100
Temperature ControllerMicroprocessor Based Controller
Temperature Recorder Micro processor based Weekly Circular Chart type (Optional)
DisplayHigh Contrast LED / LCD display
AlarmHigh and low temperature Audio / Visual Alarm
ConstructionDouble / Triple walled
Construction TypeCorrosion Resistant
Interior Chamber304 Grades Stainless Steel
Middle ChamberGalvanized Steel (if Triple Walled)
Exterior ChamberGalvanized / CRCA sheet finished with bacteria resistant coating
InsulationPUF insulation
DoorGalvanized Steel w/ Rubber Gasket & Locking System
Ice Pack CompartmentBuilt in Ice Pack compartment for maintaining temperature
CompressorBranded Hermetically sealed compressors
CoolingCFC / HCFC Free Refrigerant (R134a)
Air CirculationForced Air Circulation
DefrostManual / Automatic
Combi-CondenserSkin condenser on inner lining of external  body + Air-cooled type condenser with grooved Aluminum fins for effective heat transfer
Safety Fuses for Compressor and Temperature Controller Unauthorized Locking System (Optional)
Stabilizer Built inAutomatic Hi / Low voltage cut-off and time-delay restart
Optional Accessories
  • Temperature data logger
  • Temperature Chart Recorder
  • Computer Interface & software
  • Data storage & print function Alarm system with rechargeable battery backup
  • Alarms for open doors, sensor faults, and condenser faults etc.
  • Automatic Voltage Stabilizer
  • Dual door system with inner glass door
CastersLockable Caster Wheels (Optional)
Power SwitchKey Operated
Power Supply220 / 240 Volts
CertificationsISO and CE Certified

Bionics Scientific is a leading Ice Lined Refrigerator manufacturer in India and both ready-made and customized units at factory prices worldwide. Specializing in world-class refrigeration technology, we offer the right solutions at low operating cost to our customers. If you are looking to buy an icelined refrigerator for vaccine or blood storage or just want to ask any questions, we are always ready to support you and provide a guarantee of the best services ever.


Frequently Asked Questions

An Ice Lined Refrigerator (ILR) is a refrigeration unit that maintains a stable internal temperature between 2°C to 8°C using ice lining. It is commonly used for storing vaccines and blood bags in the medical and pharmaceutical sectors.

Ice Lined Refrigerators are designed to operate between 2°C and 8°C to ensure the safe storage of temperature-sensitive medical supplies such as vaccines.

ILR stands for Ice Lined Refrigerator, a medical device used in cold chain systems for storing vaccines and other biological products at a consistent low temperature.

A high-quality Ice Lined Refrigerator can maintain the required temperature for more than 25 hours during a power outage, making it ideal for remote or unstable power locations.

Ice Lined Refrigerators are used in hospitals, vaccine storage centers, blood banks, and primary healthcare centers as part of the medical cold chain.

ILRs maintain temperatures between 2°C to 8°C for vaccine storage, while deep freezers operate at lower temperatures (as low as -20°C) for storing different medical items like plasma or certain pharmaceuticals.
