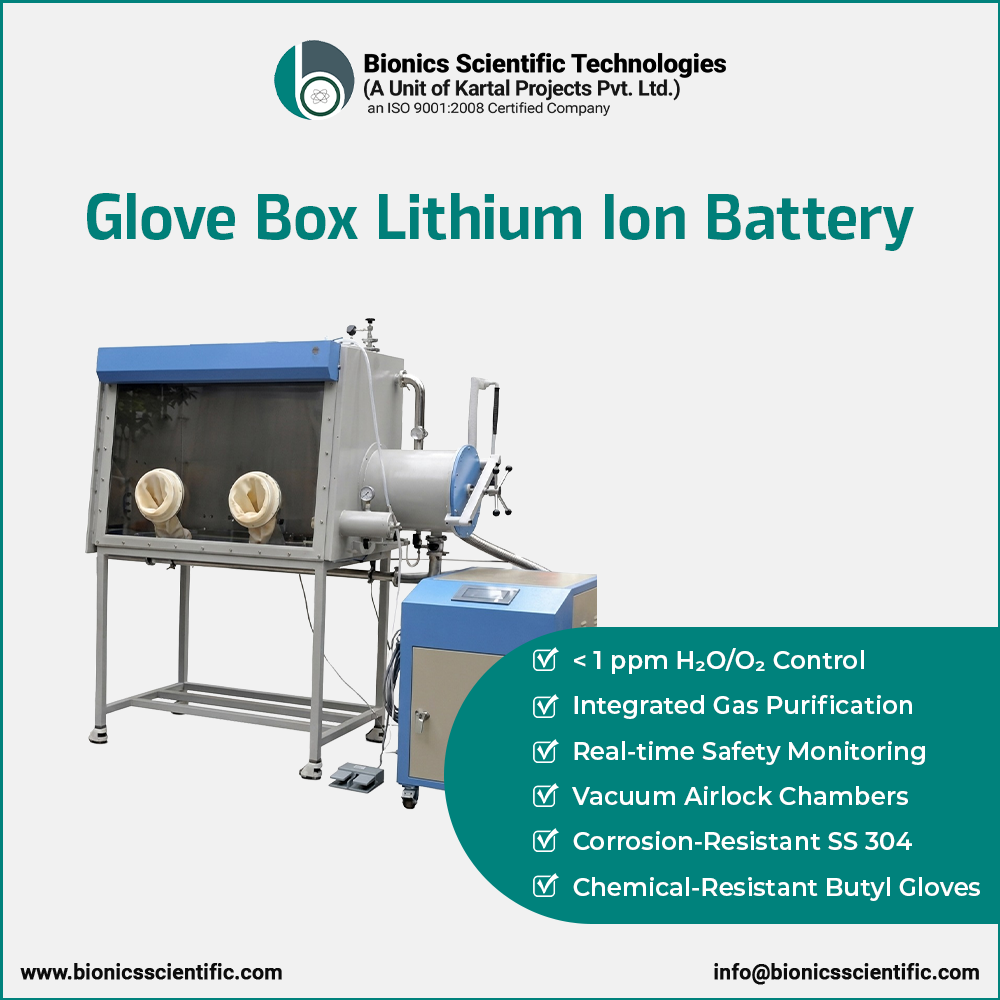

Lithium-Ion Battery Glove Box for Coin Cell Fabrication

A battery glove box gives moisture- and oxygen-sensitive battery materials a dry, inert space to work in. We are Bionics Scientific Technologies, a manufacturer with more than 35 years of experience, and we build controlled-atmosphere glove boxes for lithium-ion, sodium-ion and advanced battery research. Ours supports coin cell preparation, electrode handling, electrolyte filling and cell assembly.

Built for Battery Research

The glove box is made from corrosion-resistant 304 stainless steel and uses PLC-based controls, so day-to-day operation is simple. Its gas purification system is designed to keep O2 and H2O below 2 ppm under specified operating conditions.

You choose the layout. Chamber configuration, glove ports, electrical feedthroughs and accessories can all be matched to your equipment and your research. If you will handle solvents, electrolytes or other chemicals, the setup should be selected for those materials and for your laboratory's safety requirements.

Battery Glove Box Applications

The box can be configured for lithium-ion, sodium-ion and room-temperature sodium-sulfur (RT Na-S) research. It protects battery materials and electrolytes from atmospheric moisture and oxygen during the steps that need it most.

For coin cell work, the chamber can be set up to hold a coin cell crimping machine along with your tools and supporting equipment. For RT Na-S research, we can plan enough workspace for the crimper and the accessories used in coin cell fabrication. Inside, researchers handle electrodes, fill electrolyte, prepare coin cells and assemble cells.

Key Features

  • 304 stainless steel construction
  • PLC touch panel controls and foot pedal
  • Gas purification system with H2O analyzer
  • Airlock chamber with airlift (360 mm ID x 435 mm L)
  • Room for a coin cell crimping machine, subject to its dimensions
  • Optional vacuum pump, butyl rubber gloves, extra glove ports and stand

Battery Glove Box Technical Specifications

Model BST/VGB-7H2 specifications
ModelBST/VGB-7H2
Construction material304 Stainless Steel
Dimensions1230 mm (L) × 740 mm (W) × 900 mm (H)
Total Height with frame1860 mm
Maximum Positive Pressure810 Torr (flowing gas only; not designed for vacuum)
Airlock Chamber with Airlift360 mm (ID) × 435 mm (L)
Maximum Vacuum Level0.05 Torr
Leakage Rate< 3 Torr/hour
Standard Accessories - Gas Purification System
- PLC Touch Panel
- Foot Pedal
- H2O Analyzer
- One Pair of Latex Gloves
Optional Accessories - Vacuum pump & fittings
- Butyl Rubber Gloves
- Three / Four Glove Ports
- Stand: Powder Coated MS / Stainless Steel
Battery Research Applications Lithium-ion battery research
Sodium-ion battery research
Room-temperature sodium-sulfur (RT Na-S) battery research
Coin cell preparation and assembly
Coin cell crimping machine integration (subject to equipment dimensions and configuration)
Note:Glove box configuration can be customized according to battery research application, equipment dimensions, required controlled atmosphere and laboratory process requirements.

How to Choose the Right Configuration

Send us three things: your application (lithium-ion, sodium-ion or RT Na-S), the dimensions of your coin cell crimping machine and other equipment, and the atmosphere you need to hold. With those we can suggest the chamber layout, glove ports and accessories. If you only need a simple benchtop box for general lab work, our transparent acrylic glove box may be enough.

To learn more about how controlled-atmosphere systems work, browse our laboratory glove box range or read our laboratory glove box guide. For research context, see the Argonne National Laboratory battery research glovebox facility, which uses a glovebox with battery crimping equipment, sodium materials, electrolytes and laboratory solvents.

Battery Glove Box Price in India

The price depends on chamber size, number of glove ports, accessories and any customisation. Since we manufacture the glove box ourselves, you get a factory price. Share your requirement and we will send a clear quotation.

Frequently Asked Questions

What is a battery glove box used for?

It gives battery materials a dry, inert space. Researchers use it for electrode handling, electrolyte filling, coin cell preparation and cell assembly.

What is the price of a lithium-ion battery glove box in India?

The price depends on chamber size, glove ports, accessories and any customisation. We are the manufacturer. Share your requirement to get a quote.

Can this glove box be used for RT Na-S battery research?

Yes. It can be configured for room-temperature sodium-sulfur research based on your atmosphere, equipment size and process.

Can a coin cell crimping machine be placed inside the glove box?

Yes, depending on the machine's dimensions and the glove box configuration. Check workspace and electrical needs before ordering.

What O2 and H2O levels can the glove box maintain?

The gas purification system is designed to keep O2 and H2O below 2 ppm under specified operating conditions.

Can solvents and electrolytes be handled inside the glove box?

It can be configured for suitable solvents and electrolytes. Choose the setup to match the materials, your process and your lab safety procedures.

What is the size and material of the battery glove box?

Model BST/VGB-7H2 is made of 304 stainless steel and measures 1230 × 740 × 900 mm. Total height with frame is 1860 mm.

Can the battery glove box be customised?

Yes. Chamber layout, glove ports, electrical feedthroughs and accessories can be set to suit your research and equipment.

Need a Battery Glove Box for Your Research?

Share your application, coin cell crimping machine dimensions and atmosphere requirements with our team. We will help you choose a suitable glove box configuration for your laboratory.
