Static Pass Box Manufacturer in India

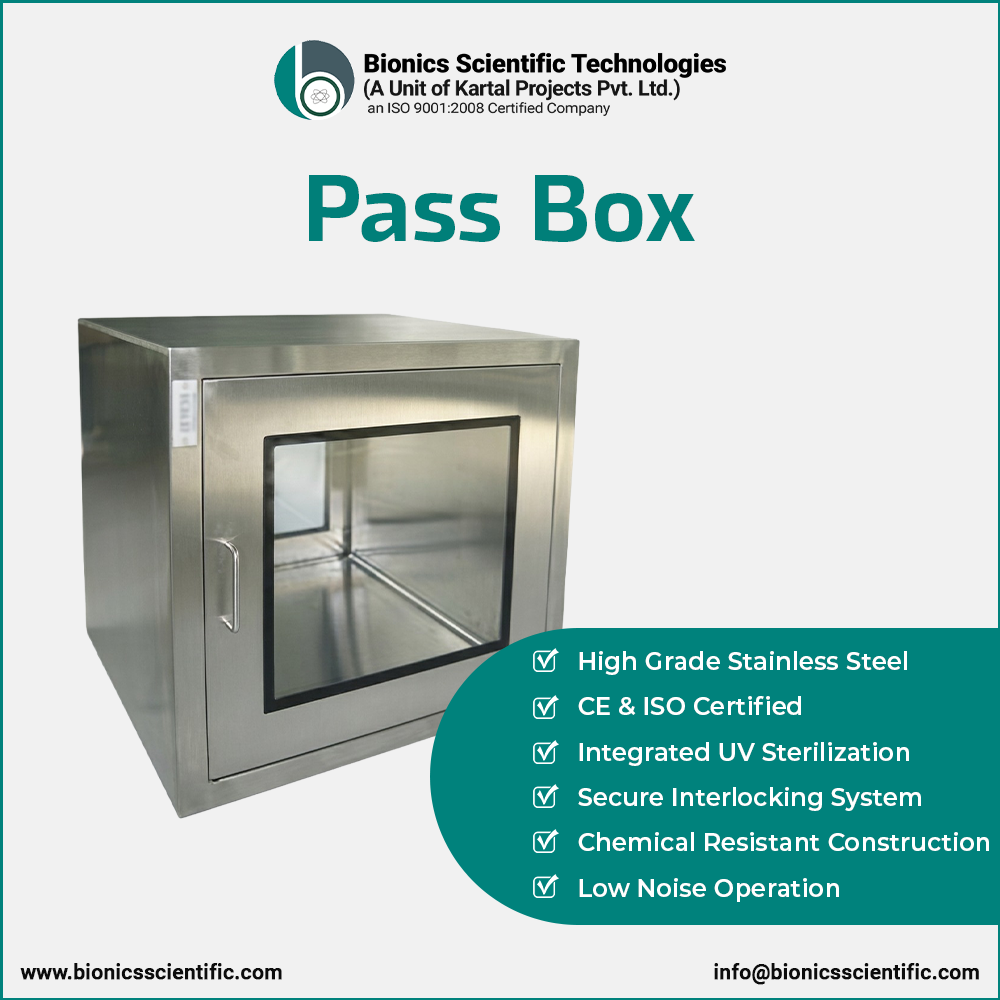

Bionics Scientific is a trusted Static Pass Box Manufacturer in India, offering premium-quality cleanroom pass boxes designed to transfer materials safely between controlled environments while minimizing contamination risks. Our stainless steel static pass boxes are available in SS 304 and SS 316 construction with mechanical or electrical interlocking, UV light, tempered glass viewing windows and customized dimensions for pharmaceutical, biotechnology, food processing, electronics and laboratory applications.
Static Pass Box Features
| Precision designing and finish | High grade stainless steel construction |
| Choice of mechanical or electrical interlocked | Static and Dynamic Pass Box models |
| Floor and wall mounted design | Maximum chemical resistance construction |
| CE and ISO certified | UV light along with hour meter |
| Buzzer indication to know the material is kept inside | Indicating lamp to know the door lock-unlock condition |
| Magnehellic gauge for measuring pressure drop | Low Vibration and Noise |
What is a Static Pass Box?
Bionics Scientific presents its static pass box equipment, fabricated with powder coated 304 / 316 grades stainless steel and high quality components and are capable of eradicating pollutants completely from the air. These static pass boxes are installed in manufacturing areas and filter the incoming air in order to keep the air free from dust and other contaminants. With UV light along with hour meter, Fluorescent light, buzzer indicator to know the material is kept inside and indicating lamp, these static pass boxes provide excellent working performance in the clean room unit.
Static Pass Box Specifications
| Product | Static Pass Box |
| Construction | Stainless Steel 304 / 316 / 316L |
| Door | Solid door w/ mechanical or electrical interlocked |
| Window | Tempered Glass |
| Accessories | Hour meter |
| Electricals | Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps |
| Window | Tempered Glass |
| UV Lamp | Optional |
| HEPA Filter | Optional |
| Filtration efficiency | ≥ 99.99% @ ≥ 0.3μm |
| Power Supply | 220 / 230 Volts |
| Certifications | CE and ISO |
Dynamic Pass Box
Dynamic Pass Box equipment are made of powder coated high grades stainless steel (304 / 316 / 316 L) with international quality standard components including mechanically or electrically interlocked doors and UV light. These dynamic pass box equipment are equipped with suction filter made of stainless steel with 95% down to 5µ efficiency (EU-4rating) and supply filter made of aluminum with 99.999% down to 0.001 µ (EU-14 Rating.) An interlock guard system controls the inlet and the outlet of PASS BOX not be opened at the same time, in order to prevent the cross contamination.
Specifications:
| Product | Dynamic Pass Through Box |
| Construction | Stainless Steel 304 / 316 / 316L |
| Door | Solid door w/ mechanical or electrical interlocked |
| Window | Tempered Glass |
| UV Lamp | Optional |
| HEPA Filter | Optional |
| Suction Filter | Stainless Steel w/ 95% down to 5 µ Efficiency (EU-4 Rating.) |
| Supply Filter | Aluminum w/ 99.999% down to 0.001 µ (EU-14 Rating.) |
| Blower | Branded Heavy duty |
| Noise | <78 |
| Power Supply | 220 / 230 Volts |
| Accessories | Hour meter, Magnehelic / Minihelic Pressure Gauge |
| Electricals | Hour Meter, Fluorescent light, UV light, Electromagnet for door interlocking, Buzzer and Indicator lamps |
| Air Shower Facility | Optional |
| Cleanliness | Class 100 |
| Certifications | CE and ISO |
Static Pass Box Applications
| Pharmaceutical industries | Chemical research laboratories | Electronic industry |
| Semiconductor production | Food processing industry |
Frequently Asked Questions
What is a Static Pass Box?
A Static Pass Box is a cleanroom transfer chamber used to safely move materials between two controlled areas without allowing personnel movement. It helps reduce contamination and maintain cleanroom integrity.
What is the purpose of a Static Pass Box?
The primary purpose of a Static Pass Box is to transfer products, tools, samples, and materials between cleanroom zones while minimizing dust, airborne particles, and cross-contamination.
What is the difference between a Static Pass Box and a Dynamic Pass Box?
A Static Pass Box does not use HEPA-filtered airflow and is suitable for transferring materials between areas of similar cleanliness. A Dynamic Pass Box includes a HEPA filtration system and blower to provide continuous filtered airflow for higher contamination control.
Where are Static Pass Boxes used?
Static Pass Boxes are widely used in pharmaceutical manufacturing, biotechnology laboratories, hospitals, food processing plants, electronics manufacturing, research laboratories, and other cleanroom environments.
What materials are used to manufacture a Static Pass Box?
Most Static Pass Boxes are manufactured using high-quality Stainless Steel 304 or Stainless Steel 316/316L, ensuring excellent corrosion resistance, durability, and easy cleaning.
Does a Static Pass Box require a HEPA filter?
No. A standard Static Pass Box does not require a HEPA filter because it operates without forced airflow. However, HEPA filtration can be provided as an optional feature based on application requirements.
What industries use Static Pass Boxes?
Industries including pharmaceuticals, life sciences, healthcare, chemical laboratories, semiconductor manufacturing, food processing, cosmetics, and research facilities commonly use Static Pass Boxes.
Can a Static Pass Box be customized?
Yes. Bionics Scientific manufactures customized Static Pass Boxes in various sizes, stainless steel grades, interlocking systems, UV light options, and installation configurations to meet customer requirements.
What safety features are available in a Static Pass Box?
Common safety features include mechanical or electrical door interlocking, UV sterilization, tempered glass viewing windows, indicator lamps, buzzer systems, and durable stainless steel construction.
Why choose Bionics Scientific for Static Pass Boxes?
Bionics Scientific is a trusted Static Pass Box Manufacturer in India offering high-quality cleanroom equipment, custom engineering, reliable after-sales support, competitive pricing, and solutions that comply with international quality standards.
