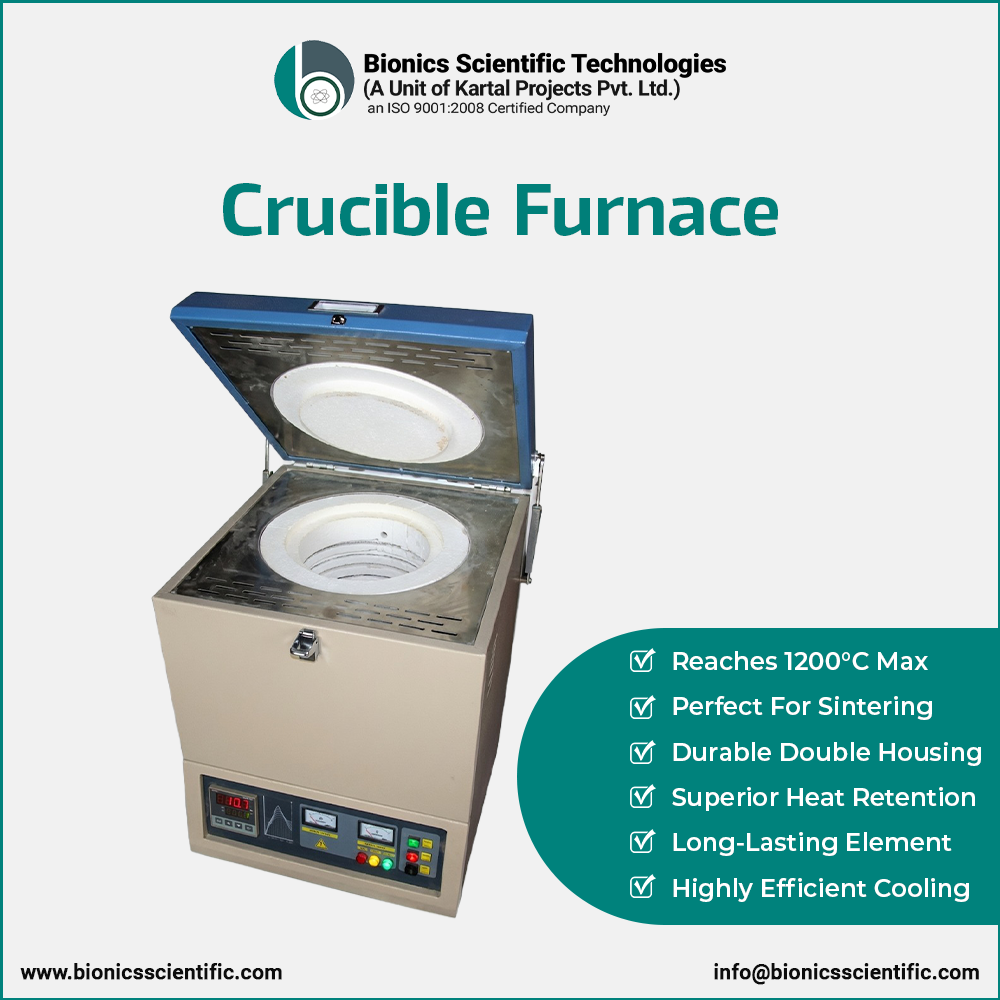

Crucible Furnace Manufacturer in India

A Crucible Furnace is used for laboratory heat treatment, ceramic sintering and melting applications involving metals such as gold and copper. The Bionics Scientific Crucible Furnace is designed with a double-layer steel construction, ceramic fiber insulation and an air cooling system. It offers a maximum temperature of 1200°C and a working temperature of 1100°C.

The furnace is available with a PID temperature controller and Fe-Cr-Al heating element. Bionics Scientific also offers customization options for temperature range, heating element type and other configurations, subject to customer requirements. Contact our team to discuss your application, required configuration and quotation.

Crucible Furnace Working Principle

A crucible furnace works by heating a crucible containing the material to be processed. Heat is generated through the furnace heating element and transferred to the crucible, allowing the material to reach the required processing temperature. The PID temperature controller helps regulate the heating process according to the selected temperature setting.

Applications of Crucible Furnace

Crucible furnaces are used in laboratories and material processing environments for applications such as:

  • Melting suitable metals, including gold and copper, subject to crucible compatibility.
  • Ceramic sintering and material processing.
  • Laboratory heat treatment applications.
  • Research and experimental high-temperature heating.

How to Choose a Crucible Furnace

Before selecting a crucible furnace, consider the required operating temperature, material being processed, crucible capacity, heating element, temperature control requirements and available power supply. Confirm that the crucible material and furnace configuration are suitable for your specific application.


Features:


Up to 1200°C max. temperature Ideal for sintering ceramics and metals
Double-layer housing Ceramic fiber insulation
Long-service-life heating element Efficient air cooling

Specifications:


Model BST/CF-1200
Max. Temperature 1200°C
Working Temperature 1100°C
Temperature controller PID controller
Heating Element Fe-Cr-Al
Max. Heating Rate 40°C/min
Construction Double-layer steel
Insulation Ceramic fiber
Cooling Air cooling
Power supply 220 Volts 50Hz

Frequently Asked Questions About Crucible Furnace

What is a Crucible Furnace?
A crucible furnace is a heating system used to heat materials inside a crucible for metal melting, ceramic sintering and laboratory applications.
What is a Crucible Furnace used for?
It is used for suitable metal melting, ceramic sintering, laboratory heat treatment and high-temperature material processing.
What is the maximum temperature of the BST/CF-1200 Crucible Furnace?
The BST/CF-1200 has a maximum temperature of 1200°C and a working temperature of 1100°C.
Which heating element is used in the Crucible Furnace?
The BST/CF-1200 model uses a Fe-Cr-Al heating element for high-temperature heating applications.
Does the Crucible Furnace have a temperature controller?
Yes, the BST/CF-1200 is equipped with a PID temperature controller to regulate the heating process.
What is the power supply requirement of this Crucible Furnace?
The listed power supply requirement for the BST/CF-1200 is 220 Volts, 50 Hz.
Can the Crucible Furnace be customized?
Yes, Bionics Scientific offers customization options for temperature range, heating element type and other configurations based on customer requirements.
How can I get a price quotation for a Crucible Furnace?
Contact Bionics Scientific with your application and configuration requirements to request a Crucible Furnace quotation.
