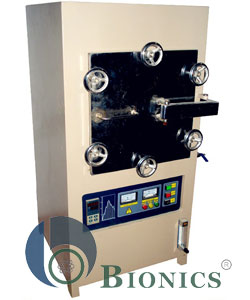

Controlled Atmosphere Furnace
A Controlled Atmosphere Furnace is a high-temperature heating system designed for processes that require a controlled environment to help protect samples from oxidation. Bionics Scientific offers atmosphere furnaces with inert gas access, including nitrogen and argon, for applications such as heat treatment, bonding and curing.
Also known as an Inert Atmosphere Furnace, this system features a double-shell chamber construction, fan cooling and a digital PID temperature controller. Depending on the selected model, the furnace offers maximum temperatures ranging from 1200°C to 1800°C, with different heating elements and thermocouple configurations.
Bionics Scientific manufactures atmosphere furnaces in India with multiple model options and standard inner chamber sizes. Temperature range, chamber dimensions and available accessories can be considered according to the application requirements. Contact our team to discuss the suitable Laboratory Atmosphere Furnace configuration for your process.
Key Features of Controlled Atmosphere Furnace
| Designed for inert atmosphere heating applications | Maximum temperature options from 1200°C to 1800°C |
| Double-shell chamber construction | Fan-assisted cooling system |
| Digital PID temperature controller | Model-specific heating element configurations |
| Access for nitrogen, argon and other inert gases | Programmable temperature control with 30 steps |
Technical Specifications of Controlled Atmosphere Furnace
| Model | BST/AF/1200 | BST/AF/1400 | BST/AF/1600 | BST/AF/1800 |
|---|---|---|---|---|
| Working Temperature | 1100°C | 1300°C | 1500°C | 1700°C |
| Max. Temperature | 1200°C | 1400°C | 1600°C | 1800°C |
| Thermocouple | K Type | S Type | B Type | |
| Heating Element | Fe-Cr-Al-Mo wire | SiC heater | MoSi2 heater≤10°C | |
| Access to Inert Gas | Nitrogen, Argon and other inert gases | |||
| Temperature Control | 30 steps programmable and PID automatic control | |||
| Temperature Accuracy | ±1°C | |||
| Outer Construction | Powder Coated Mild Steel | |||
| Inner Chamber | Fiber Alumina Refractory Liner | |||
| Standard Fittings |
- Door block (1pc) - Thermocouple (1pc) - Inlet / outlet valves - Flow meter - Vacuum gauge - Vacuum pump Port - Cooling Fan - Digital Control Panel |
|||
Frequently Asked Questions
What is the maximum temperature?
Models are available with maximum temperatures from 1200°C to 1800°C.
What is the working temperature?
Working temperatures range from 1100°C to 1700°C, depending on the model.
Which gases are supported?
Nitrogen, argon and other inert gases.
Which controller is provided?
A digital PID temperature controller with 30-step programmable control.
What is the temperature accuracy?
The specified temperature accuracy is ±1°C.
Which thermocouples are available?
K Type, S Type and B Type, depending on the model.
What is the inner chamber material?
The inner chamber has a fiber alumina refractory liner.
What fittings are included?
Standard fittings include valves, flow meter, vacuum gauge, cooling fan and digital control panel.
Looking for a Controlled Atmosphere Furnace?
Contact Bionics Scientific to discuss your furnace requirements and request a quotation.
