Vacuum Furnace for Laboratory and Industrial Applications

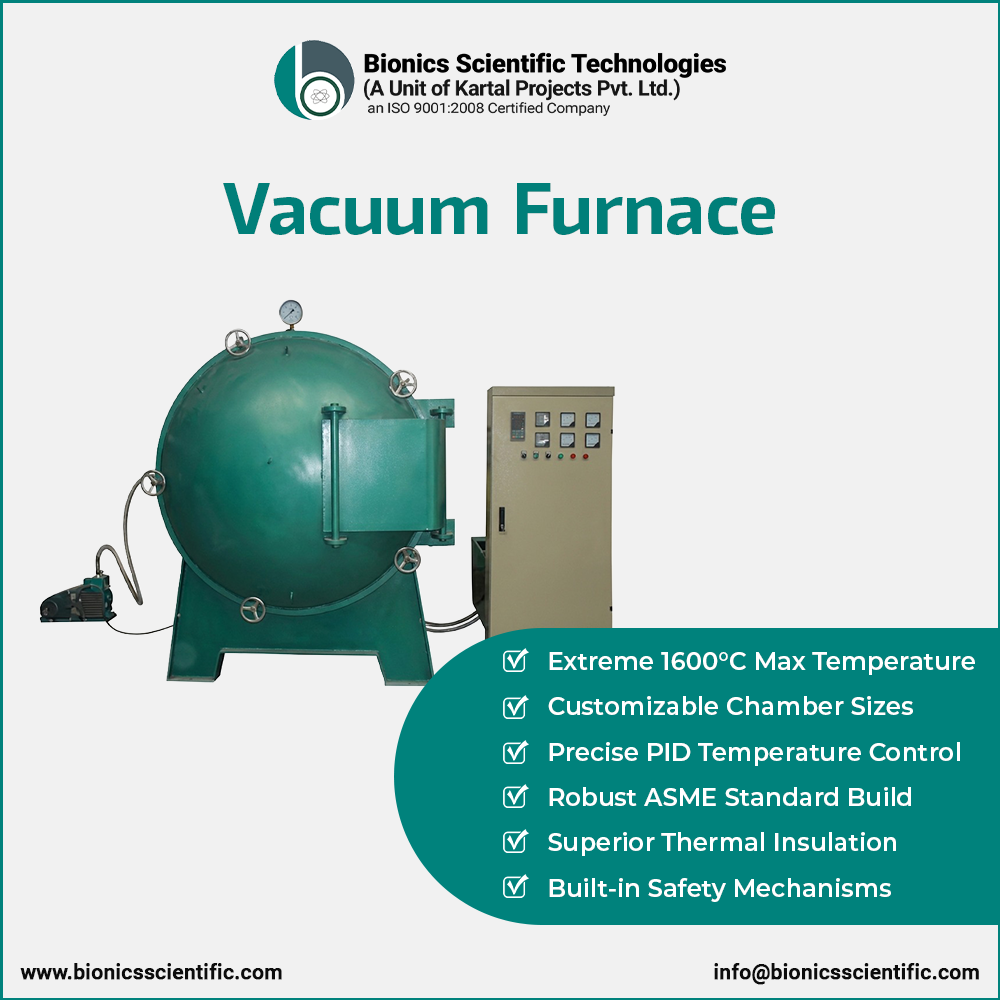

Vacuum Furnace

Vacuum Furnace is a type of furnace that operates under vacuum or controlled atmosphere to provide high temperature heat treatment for various materials. Bionics Scientific is one of the leading manufacturers and suppliers of vacuum furnaces in India, offering a range of models designed for laboratory and industrial applications.

Our vacuum furnaces are designed to provide precise temperature control and uniform heating, making them ideal for applications such as sintering, brazing, annealing, and stress relieving. They are suitable for a wide range of materials including metals, ceramics, and composites.

We offer vacuum furnaces with maximum temperature ranges from 1200°C to 1600°C, and they are equipped with advanced features such as programmable PID temperature controllers, double shell construction with water cooling, and built-in safety mechanisms. Our furnaces are designed to meet international standards and can be customized to meet specific requirements.

As a trusted vacuum furnace manufacturer in India, we also provide custom-designed solutions to meet specialized processing needs. Our team of experts works closely with clients to design, construct, and install vacuum furnaces that meet their unique requirements.

Vacuum Furnaces and brazing furnaces by Bionics Scientific are engineered for high temperature laboratory and industrial heat treatment applications including sintering, brazing, stress-relieving and annealing etc. From aerospace, tool room, powder and metal companies to gas turbine industry, our vacuum furnace units meet most demanding needs of production and research departments.

Our vacuum furnaces are horizontal and front loading in nature and manufactured to confirm AMS 2750D/BS 5500 Cat 3 British Pressure Vessel standards. The standard units are manufactured with maximum temperature range from 1200°C to 1600°C. Temperature is controlled by 30 segment PID controller, which ensures excellent level of temperature accuracy and reliability. The horizontal vacuum chamber is double walled constructed with provision of water cooling keeping your samples safe from any unwanted conditions.

Being India’s leading Vacuum Furnace manufacturers and suppliers, we also offer custom designed vacuum furnaces. These are horizontal laboratory units and are customized for specialized processing needs. We bring our expertise in designing, construction and installation at your site. These units are also exported to various African and Middle East countries at highly competitive price.

Features of Vacuum Furnace:

1200°C to 1600°C max. temperature	Double shell construction with water cooling
Customizable chamber size	Programmable PID temperature controller
ASME standard construction	Heat resistant painted outer chamber
Excellent thermal insulation	Built-in safety mechanism
Uniform temperature distribution	Meet diversified heat treatment needs

Vacuum Furnace Technical Specifications:

Model	BST/VF-1200N	BST/VF-1400S	BST/VF-1600M
Max. Temperature	1200°C	1400°C	1600°C
Working Temperature	1100°C	1300°C	1500°C
Heating rate	≤20°C/min	≤15°C/min	≤15°C/min
Temperature Accuracy	±1°C	±1°C	±1°C
Temp. Control	30 Segments PID Control	30 Segments PID Control	30 Segments PID Control
Heating Element	Fe-Cr-Al-Mo wire	SiC heater	MoSi2 Heater
Max. Vacuum	10Pa	10Pa	10Pa
Furnace Structure	Double shell w/ Water cooling	Double shell w/ Water cooling	Double shell w/ Water cooling
Accessories	- Over temperature protection - Vacuum system - Gas quenching system - Data recorder (optional)
