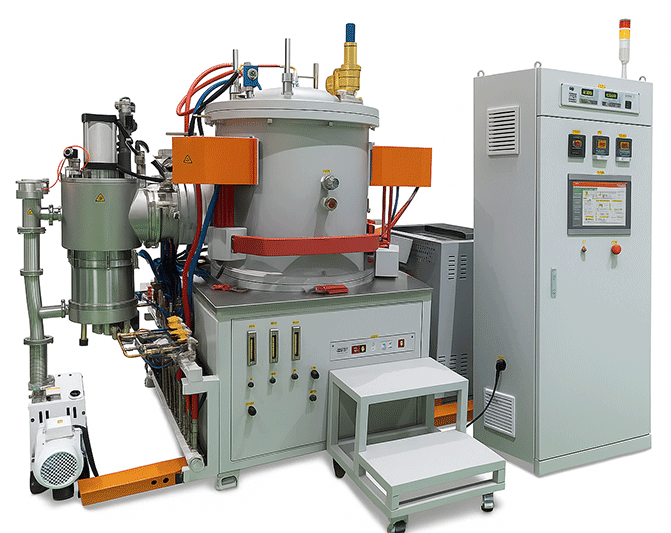

Vacuum tungsten wire furnace using tungsten mesh heating, ultra- high temperature and clean pollution – free, suitable for high purity ceramic sintering transparent ceramics, sapphire glass, zirconia and other sintering under high vacuum, degassing and aging treatment. It is also suitable for pilot scale production and use in universities and scientific research institutes.
The vacuum tungsten furnace is a high-temperature vacuum furnace that can reach up to 2200 °C. It is designed for heat treatment, sintering, and aging treatment of various materials. The furnace provides excellent temperature uniformity and outstanding vacuum performance, ensuring a reliable vacuum environment for material processing.
| Heat Treatment Furnace | Max. temperature can be 2200℃ |
| Vacuum can be 7x10^(-4)Pa. | Can inlet N2, Ar, H2, N2, and H2 mixed gas, etc |
| Good Temperature Uniformity | Excellent Vacuum |
| Easy Operational, More Stable | Ensuring a Reliable vaccum Environment |
| Model | BST/VTF 1020 | BST/VTF 2040 | BST/VTF 3050 | BST/VTF 4060 |
|---|---|---|---|---|
| Heating Zone (Dia*H)mm | Ø100*200 | Ø200*400 | Ø300*500 | Ø400*600 |
| Working Temperature | 2300 °C | 2300 °C | 2300 °C | 2300 °C |
| Temp Uniformity( ̊ C) | ±5 | ±5 | ±5 | ±5 |
| Power (KW) | 60 | 160 | 250 | 340 |
| Ultimate Vacuum (pa) | 6x10-4 | 6x10-4 | 6x10-4 | 6x10-4 |
The vacuum tungsten furnace is widely used in various applications, including:
Bionics Scientific offers a high-quality vacuum tungsten furnace that meets the needs of researchers and manufacturers working with high-purity materials. Our furnace provides:
With Bionics Scientific's vacuum tungsten furnace, you can achieve precise temperature control and high vacuum conditions essential for advanced material processing.
| Max. VACUUM: | 7×10-4 Pa | MAX. TEMPERATURE: | 2200ºC |
|---|---|---|---|
| CHAMBER SIZE: | as per your order | FURNACE CHAMBER: | Tungsten foil |
| HEATING ELEMENT: | Tungsten net | OBSERVATION HOLE: | Yes |
| CONTROL: | PLC | THERMOCOUPLE: | W-Re Thermocouple |
| MAX. HEATING RATE: | 20°C /min | TEMPERATURE ACCURACY: | ±1ºC |
| TEMPERATURE UNIFORMITY: | ±3ºC |
For more information about our vacuum tungsten furnace or to request a quote, please contact us at info@bionicsscientific.com or call us at +91 9111161955 | 9376651333. Our team is ready to assist you with your high-temperature vacuum furnace needs.
The high-temperature vacuum tungsten coil furnace operates at 2200 °C as its maximum temperature rating. The equipment functions to sinter and degase high-purity ceramics and transparent ceramics and sapphire glass and zirconia materials under vacuum conditions. The furnace contains a tungsten mesh heating element which generates ultra-high temperatures while providing pollution-free heating.
The equipment operates for pilot-scale manufacturing and scientific research applications at universities and research institutions. The vacuum tungsten furnace maintains excellent temperature uniformity while providing outstanding vacuum performance and simple operation to create reliable vacuum conditions for material processing.
The vacuum tungsten furnace system performs heat treatment and sintering and aging treatment operations for multiple material types. The vacuum tungsten furnace accepts N2, Ar, H2 and N2-H2 mixed gas inputs through its inlet system, which makes it a flexible tool for high-temperature processing.
The high-temperature vacuum tungsten coil furnace serves as an essential tool for researchers and manufacturers who work with high-purity materials that need exact temperature management and vacuum purity.
